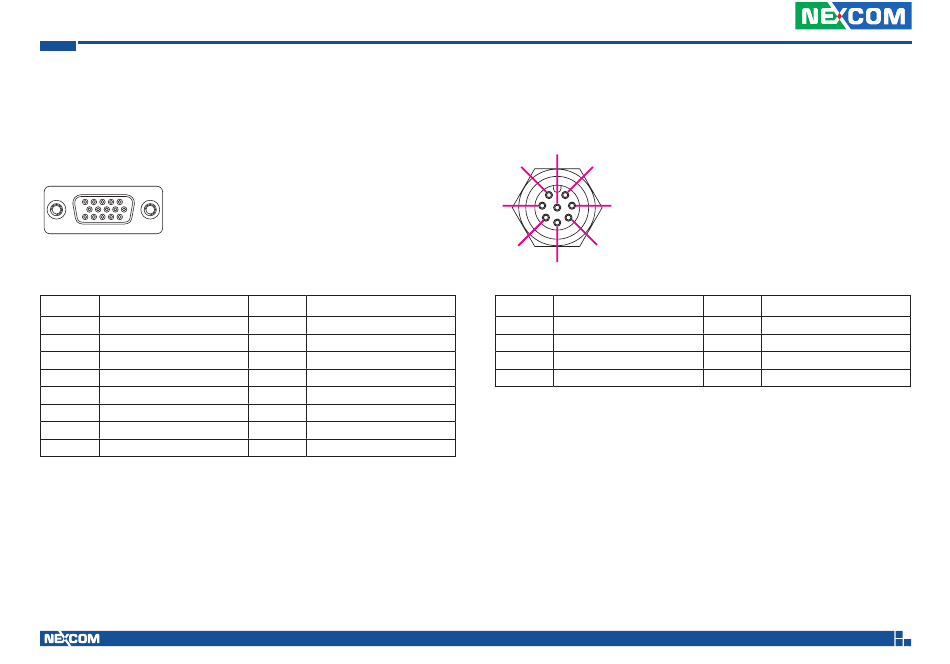

Chapter 2: External Connectors Pinout Description
VGA Connector
Connector number: 10
5
1
5
1
15
11
15
11
Pin
Definition
1
VGA_RED
3
VGA_BLUE
5
GND
7
GND
9
+5V
11
NC
13
VGA_HS
15
VGA_CLK
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
VGA_GREEN
4
NC
6
GND
8
GND
10
GND
12
VGA_DATA
14
VGA_VS
M12 USB 2.0 Connector
Connector Number: 11
8
1
2
7
3
4
6
5
Pin
Definition
1
USB1_N
3
USB1_VCC5
5
USB2_N
7
USB2_VCC5
15
Pin
Definition
2
USB1_P
4
USB1_GND
6
USB2_P
8
USB2_GND
nROK 7251 Series User Manual
