Chapter 3: Jumpers and Connectors

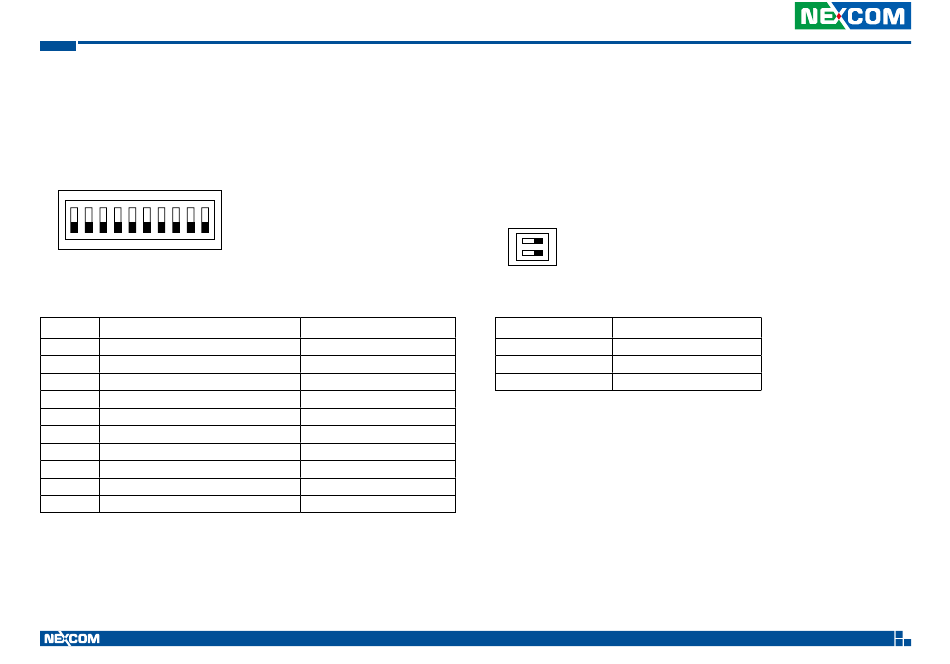

PIO PULL-HIGH Selection Switch

Connector size: 2 x 10 = 20-pin switch
Connector location: SW4
10
11
ON
Pin On
1 GPI1 Internal Pull High (Default)
2 GPI2 Internal Pull High (Default)
3 GPI3 Internal Pull High (Default)
4 GPI4 Internal Pull High (Default)
5 GPI5 Internal Pull High (Default)
6 GPO1 Internal Pull High (Default) External Pull High
7 GPO2 Internal Pull High (Default) External Pull High
8 GPO3 Internal Pull High (Default) External Pull High
9 GPO4 Internal Pull High (Default) External Pull High
10 N/A
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
1
20
Off
External Pull High
External Pull High
External Pull High
External Pull High
External Pull High
N/A

RTC Switch

Connector size: 2 x 2 = 4-pin switch
Connector location: SW6
1 4
O
N
2 3
Pin
1 OFF 2 OFF
1 OFF 2 ON
1 ON 2 ON 9-36V (Default)
41
Definition
12V
24V
