Appendix A: Software Demo Utility for I/O Ports of Function Control

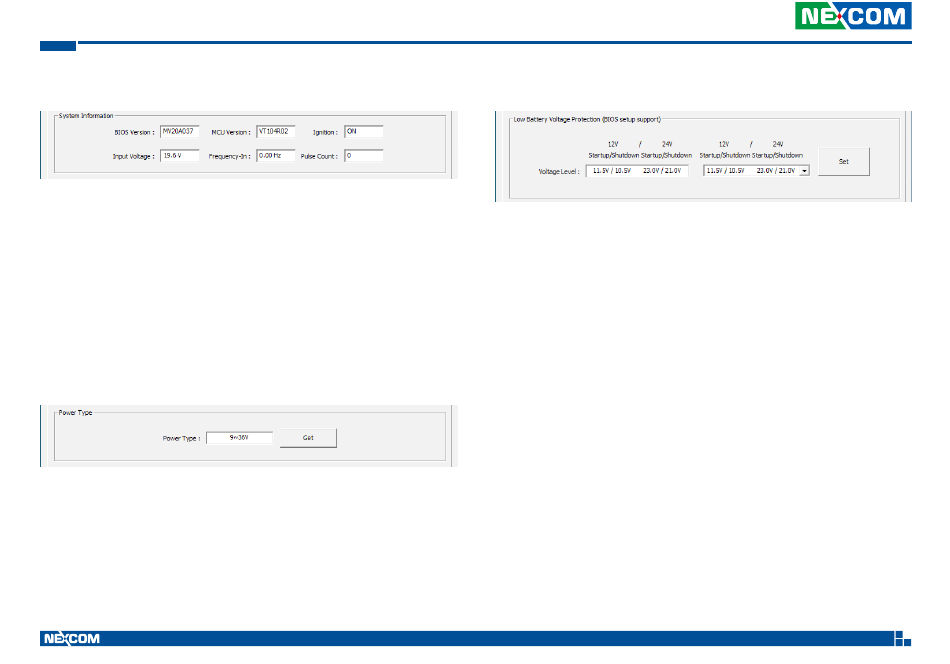

1.1 System Info
• BIOS Version: Shows the BIOS Version.
• MCU Version: Shows the MCU Version.
• Ignition: Shows the signal of ignition.
- ON: Signal of ignition is high.
- OFF: Signal of ignition is low.
• Input Voltage: Shows the voltage level of power-in.
• Frequency-In: Shows the voltage frequency.
• Pulse Count: Shows the Frequency-In of Pulse Count.
1.2 Power Type
Shows the setting of input voltage in DIP switch.
- If the setting is 12V: 12V is shown.
- If the setting is 24V: 24V is shown.
- If the setting is 9V~36V: 9V~36V is shown.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
1.3 Low Battery Voltage Protection
Sets the Low Battery Voltage Protection Startup/Shutdown voltage level
during 12V/24V.
