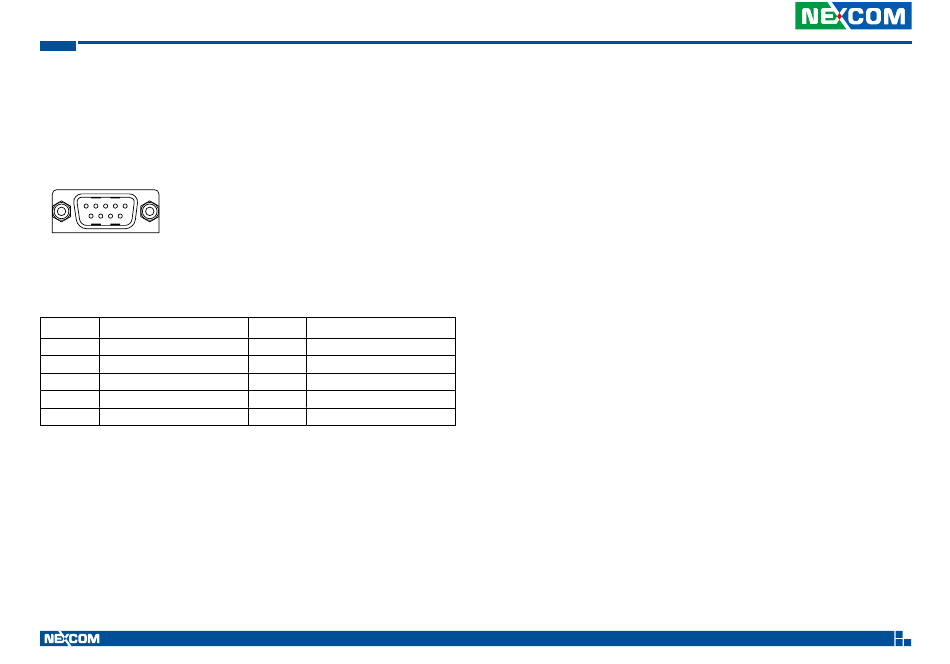

DB9 (COM) for full RS232/RS422/RS485

Connector number: 9
1 5
6 9
Pin Definition
1 SP2_DCD#_TX-
2 SP2_RX_TX+
3 SP2_TX_RX+
4 SP2_DTR#_RX-
5 COM2_GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
6 SP2_DSR#
7 SP2_RTS#
8 SP2_CTS#
9 SP2_RI#

DB9 Expansion Port (Optional)

Connector number: 10
This connector is an option and dedicated to the expansion.
