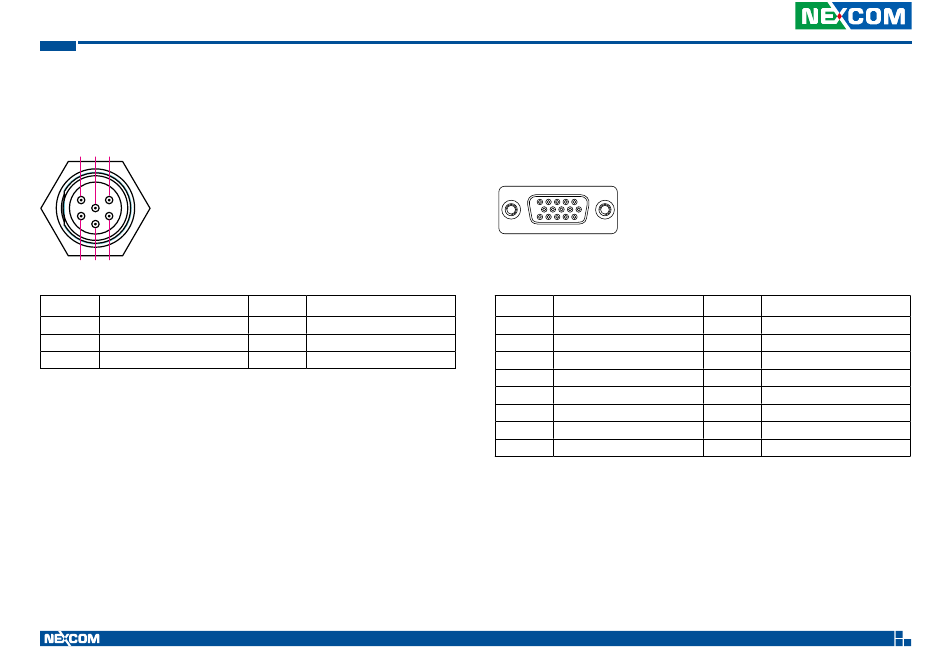

Chapter 2: External Connectors Pinout Description
M12 Audio Connector
Connector Number: 11
5
6
1
4 3 2
Pin
Definition
1
GND
3
MIC_L
5
Line out_Jdetect
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
MIC_Jdetect
4
Line out_R
6
Line out_L
VGA Connector
Connector number: 12
5
1
5
1
15
11
15
11
Pin
Definition
1
VGA_RED
3
VGA_BLUE
5
GND
7
GND
9
VGA_+5V
11
GND
13
VGA_HS
15
VGA_CLK
10
Pin
Definition
2
VGA_GREEN
4
GND
6
GND
8
GND
10
GND
12
VGA_DATA
14
VGA_VS
