Chapter 3: Jumpers and Connectors

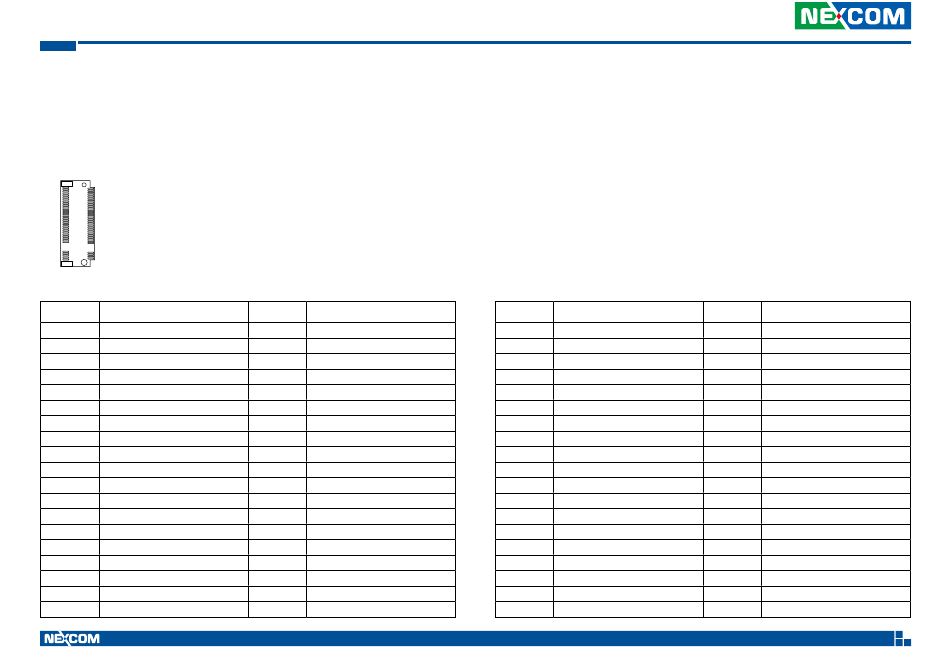

Storage Board Connector
M.2 Key M 2280 Connector
Connector location: CN1
75
74
1
2
Pin
Definition
1
CONFIG_3_B
3
GND
5
GND
7
USB_1P_M
9
USB_1N_M
11
GND
13
KEY(Notch location)
15
KEY(Notch location)
17
KEY(Notch location)
19
KEY(Notch location)
21
CONFIG_0_B
23
NC
25
NC
27
GND
29
USB3_RX2N
31
USB3_RX2P
33
GND
35
USB3_TX2N
37
USB3_TX2P
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
V3.5G_P_B
4
V3.5G_P_B
6
PWR_OFF#_B
8
W_DISABLE1#_B
10
3.5G_LED#_B
12
KEY(Notch location)
14
KEY(Notch location)
16
KEY(Notch location)
18
KEY(Notch location)
20
NC
22
NC
24
NC
26
W_DISABLE2#_B
28
NC
30
UIM_RST_B
32
UIM_CLK_B
34
UIM_DAT_B
36
UIM_PWR_B
38
NC
Pin
Definition
39
GND
41
NC
43
NC
45
GND
47
NC
49
NC
51
GND
53
NC
55
NC
57
GND
59
NC
61
NC
63
NC
65
NC
67
W_RESET#_R_B
69
CONFIG_1_B
71
GND
73
GND
75
CONFIG_2_B
55
Pin
Definition
40
NC
42
UIM2_DAT_B
44
UIM2_CLK_B
46
UIM2_RST_B
48
UIM2_PWR_B
50
NC
52
NC
54
NC
56
NC
58
NC
60
NC
62
NC
64
NC
66
NC
68
NC
70
V3.5G_P_B
72
V3.5G_P_B
74
V3.5G_P_B
