Chapter 3: Jumpers and Connectors

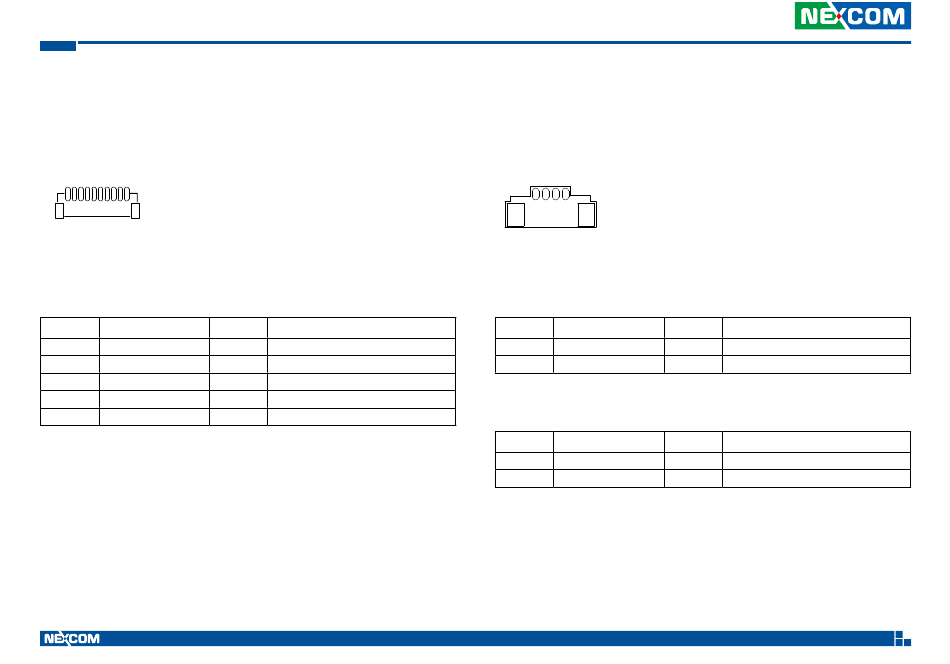

ESPI Debug Port Connector

Connector size: 1 x 10 = 10-pin header (1.00mm)
Connector location: ESPI_DB1
1 10
Pin Definition
1 GND
3 ESPI_CLK_HDR
5 ESPI_IO3_HDR
7 ESPI_IO1_HDR
9 ESPI_RST_HDR#
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PLTRST#
4 ESPI_CS0_HDR#
6 ESPI_IO2_HDR
8 ESPI_IO0_HDR
10 3VSB

USB2.0 Connector (nROK 1031 and nROK 1031-C2)

Connector size: 1 x 4 = 4-pin header (1.25mm)
Connector location: J1, J3
1 4
J1 Connector Pin Definition
Pin Definition
1 USB2_POWER
3 USB2_P6
J3 Connector Pin Definition
Pin Definition
1 USB2_POWER
3 USB2_P5
50
Pin Definition
2 USB2_N6
4 GND
Pin Definition
2 USB2_N5
4 GND
