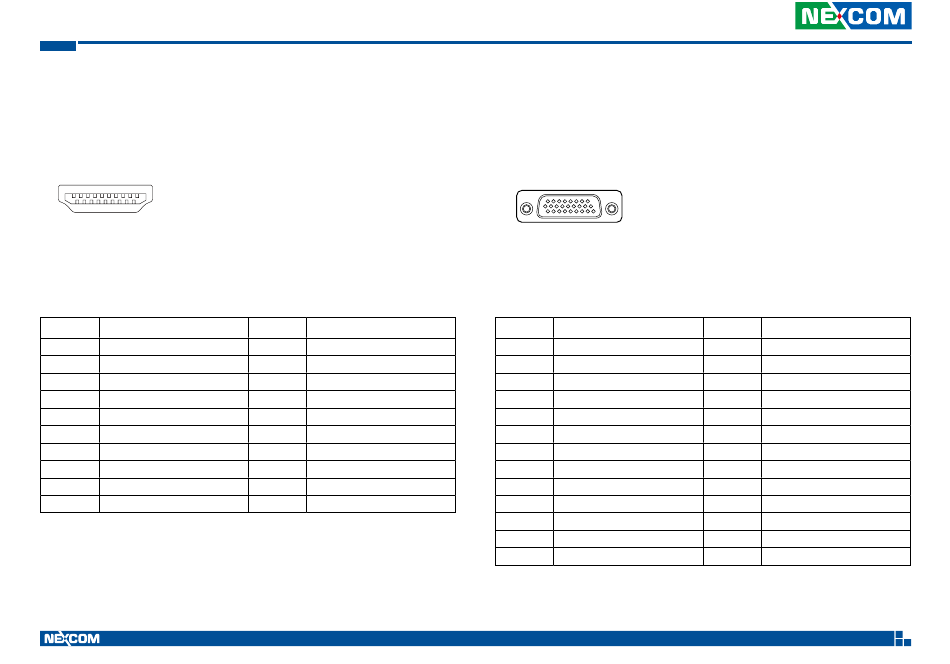

Chapter 2: External Connectors Pinout Description

HDMI

Connector number: 21
19
1
18
2
Pin
Definition
1
HDMI_TX2P
2
GND
3
HDMI_TX2N
4
HDMI_TX1P
5
GND
6
HDMI_TX1N
7
HDMI_TX0P
8
GND
9
HDMI_TX0N
10
HDMI_CLK_P
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
11
GND
12
HDMI_CLK_N
13
NC
14
NC
15
HDMIDDCSCL
16
HDMIDDCSDA
17
GND
18
HDMI_P5V
19
HDMIHPD

Multi Port

Connector number: 22
19
26
1
9
Pin
Definition
1
CAN1_H
3
CANISO_GND
5
G_I_5
7
G_I_3
9
G_I_1
11
RS485-2_-
13
RS485-1_+
15
G_O_1
17
G_O_3
19
DB26G_GND
21
RS232_RXD
23
ODOMETER
25
DB26G_GND
31
Pin
Definition
2
CAN1_L
4
DB26G_GND
6
G_I_4
8
G_I_2
10
RS485-2_+
12
DB26G_GND
14
RS485-1_-
16
G_O_2
18
G_O_4
20
DB26G_GND
22
RS232_TXD
24
DIRECTION
26
12VO
