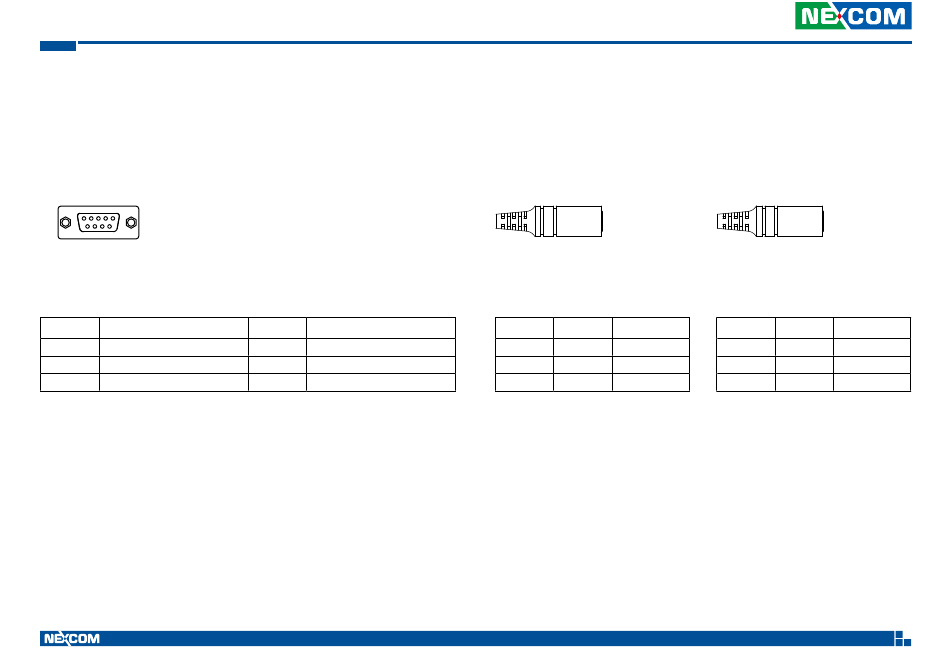

Appendix E: Pin Definition for the Multiport Cable
P1 Connector Pinout
1
5
6
9
Pin
Definition
1
AGND
2
MIC_L
3
MIC_JD
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
4
FRONT_JD
5
FRONT_L
6
FRONT_R
P2 and P3 Connector Pinouts
Phone Connector: P2, P3
P2: Pink
P1 Pin
P2 Pin
Definition
1
G
AGND
2
L
MIC_L
3
G
MIC_JD
100
P3: Green
P1 Pin
P3 Pin
Definition
4
G
FRONT_JD
5
L
FRONT_L
6
R
FRONT_R
VTC 1031 and nROK 1031 Series User Manual
