Chapter 4: System Setup
Installing a mSATA Module
Mini PCIe Slot

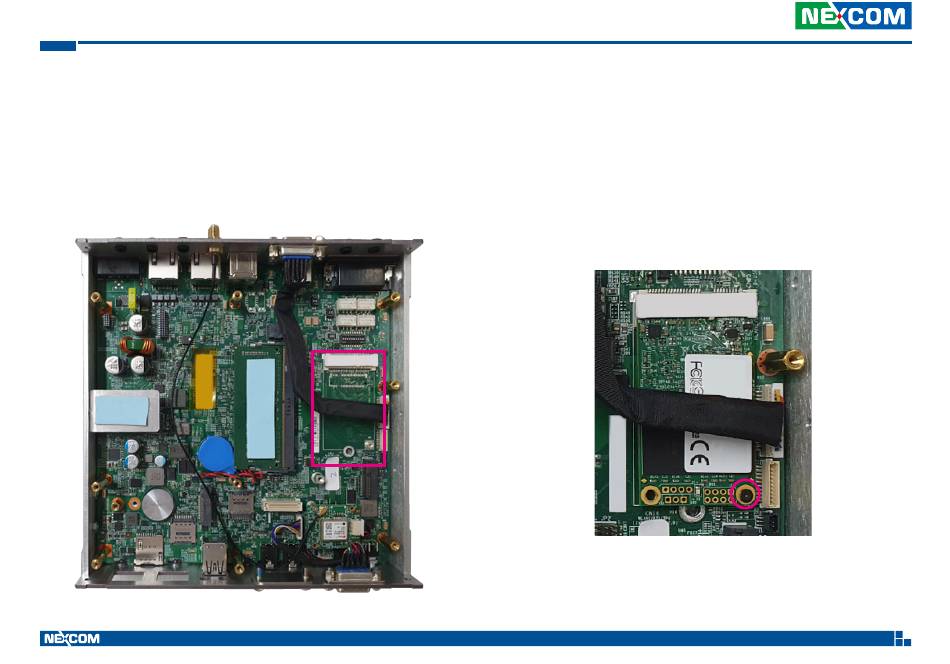

Locate the Mini PCI Express slot (CN15). Insert the module into the Mini
PCI Express slot at a 45 degrees angle until the gold-plated connector on
the edge of the module completely disappears inside the slot. Then fasten
screws into the mounting holes to secure the module.
