Chapter 3: Jumpers and Connectors

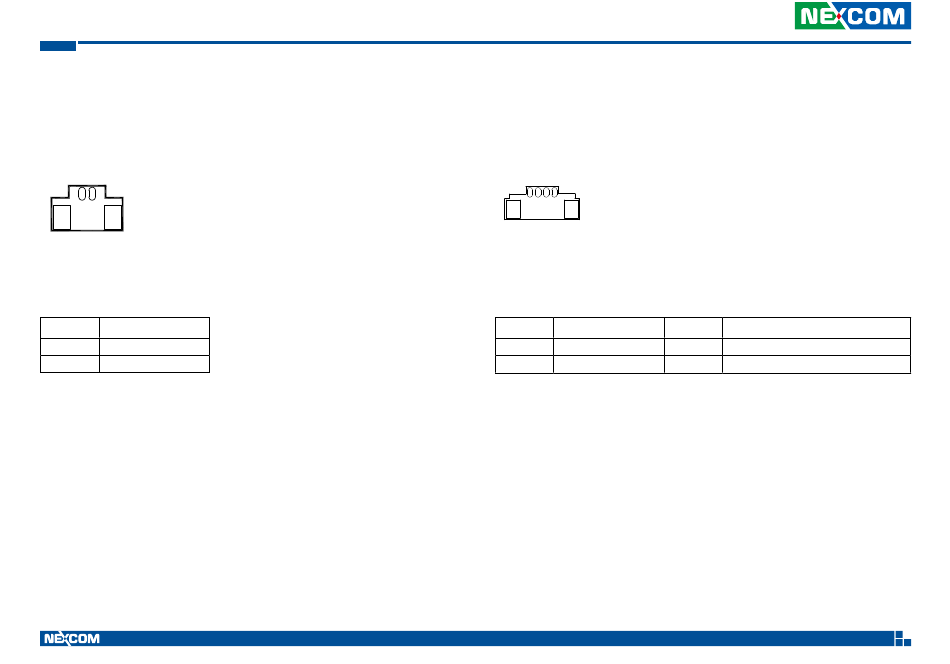

RTC Battery Connector

Connector size: 1x2= 2-pin header (1.25mm)
Connector location: J2
1 2
Pin Definition
1 GND
2 VBAT
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

USB2.0 Connector

Connector size: 1 x 4 = 4-pin header (1.00mm)
Connector location: J5
1 4
J5 Connector Pin Definition
Pin Definition
1 GND
3 USB_9N
51
Pin Definition
2 USB_9P
4 USB_POWER
