Chapter 2: External Connectors Pinout Description

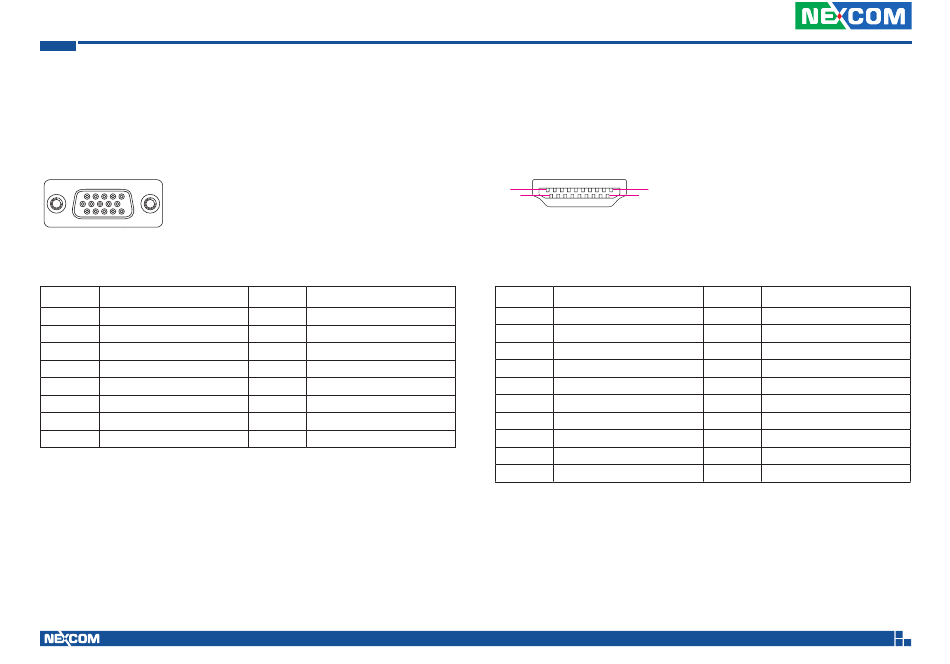

VGA Port

Connector Number: 7
11 15
1 5
Pin Definition
1 VGA_RED
3 VGA_BLUE
5 VGA_GND
7 VGA_GND
9 VGA +5V
11 VGA_GND
13 VGA_HS
15 VGA_CLK
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VGA_GREEN
4 VGA_GND
6 VGA_GND
8 VGA_GND
10 VGA_GND
12 VGA_DATA
14 VGA_VS

HDMI (By Request)

19 1
18 2
Pin Definition
1 HDMI_TX2P_L
3 HDMI_TX2N_L
5 GND
7 HDMI_TX0P_L
9 HDMI_TX0N_L
11 GND
13 NC
15 HDMI_SCL
17 GND
19 HDMI_HPD
9
Pin Definition
2 GND
4 HDMI_TX1P_L
6 HDMI_TX1N_L
8 GND
10 HDMI_CLK_P_L
12 HDMI_CLK_N_L
14 NC
16 HDMI_SDA
18 HDMI_P5V
