Chapter 2: External Connectors Pinout Description

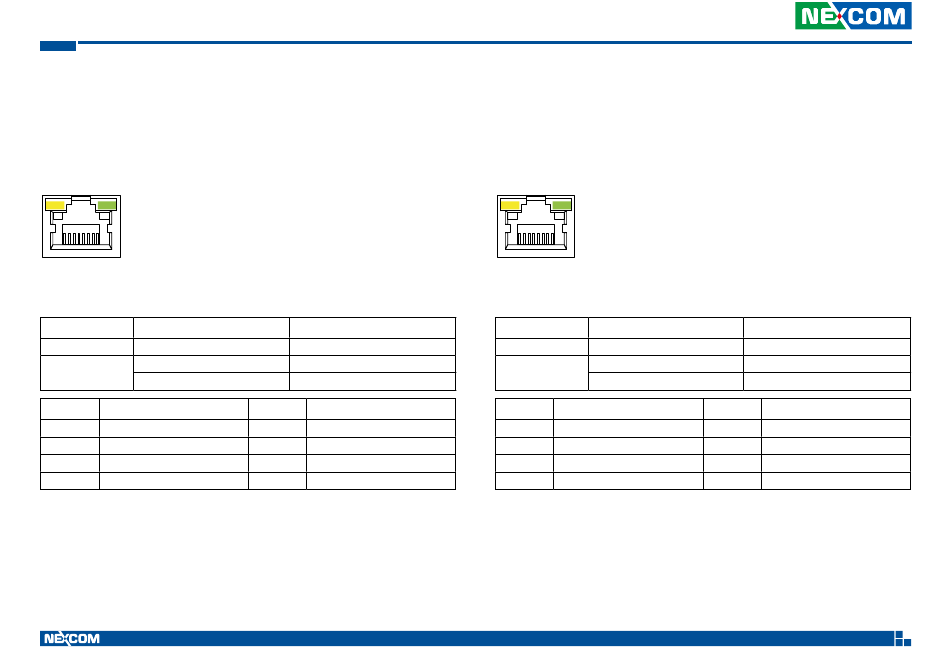

PoE LAN1 Port

Connector number: 12 (VTC 1031-C2)
LINK
ACT Speed
8 1
LED Status
Link/Act Blinking Yellow
Orange
Speed
Green
Pin Definition
1 LAN-1_MDI0P
2 LAN-1_MDI0N
3 LAN-1_MDI1P
4 LAN-1_MDI2P
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Description
LAN access
1Gbps network link
100Mbps network link
Pin Definition
5 LAN-1_MDI2N
6 LAN-1_MDI1N
7 LAN-1_MDI3P
8 LAN-1_MDI3N

PoE LAN2 Port

Connector number: 13 (VTC 1031-C2)
LINK
ACT Speed
8 1
LED Status
Link/Act Blinking Yellow
Orange
Speed
Green
Pin Definition
1 LAN-2_MDI0P
2 LAN-2_MDI0N
3 LAN-2_MDI1P
4 LA-2N_MDI2P
26
Description
LAN access
1Gbps network link
100Mbps network link
Pin Definition
5 LAN-2_MDI2N
6 LAN-2_MDI1N
7 LAN-2_MDI3P
8 LAN-2_MDI3N
