Chapter 2: Jumpers and Connectors

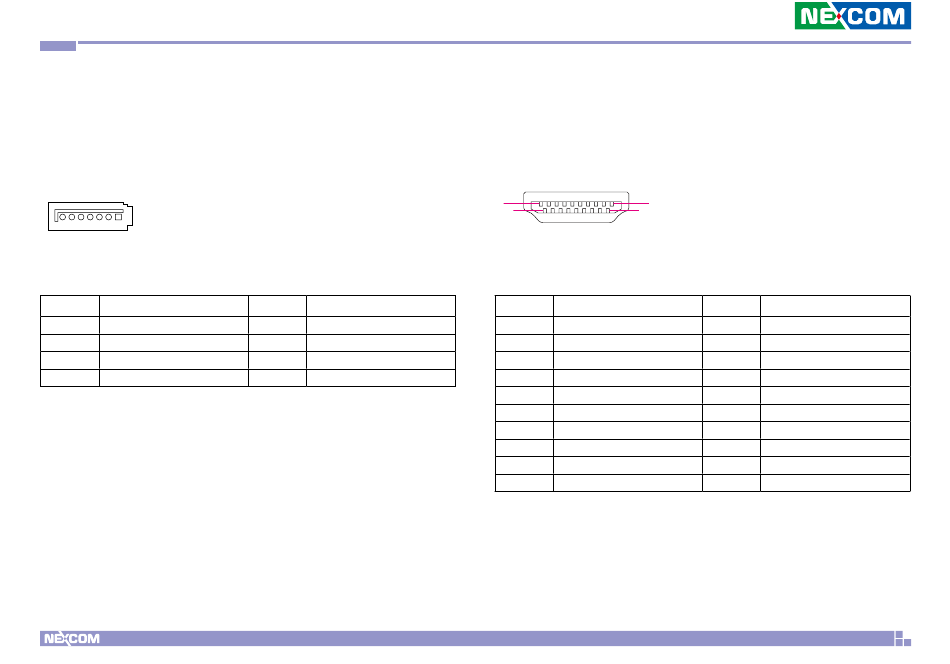

SATA Connector

Connector location: SATA
7 1
Pin Definition
1 GND
3 SATA_TXN
5 SATA_RXN
7 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SATA_TXP
4 GND
6 SATA_RXP

HDMI

Connector type: HDMI port

Connector location: HDMI

1
2 18
Pin Definition
1 TX2P
3 TX2N
5 GND
7 TX0P
9 TX0N
11 GND
13 NC
15 SCL
17 GND
19 HPD
14
19
Pin Definition
2 GND
4 TX1P
6 TX1N
8 GND
10 CLKP
12 CLKN
14 NC
16 SDA
18 +5V
