Chapter 3: Jumpers and Connectors

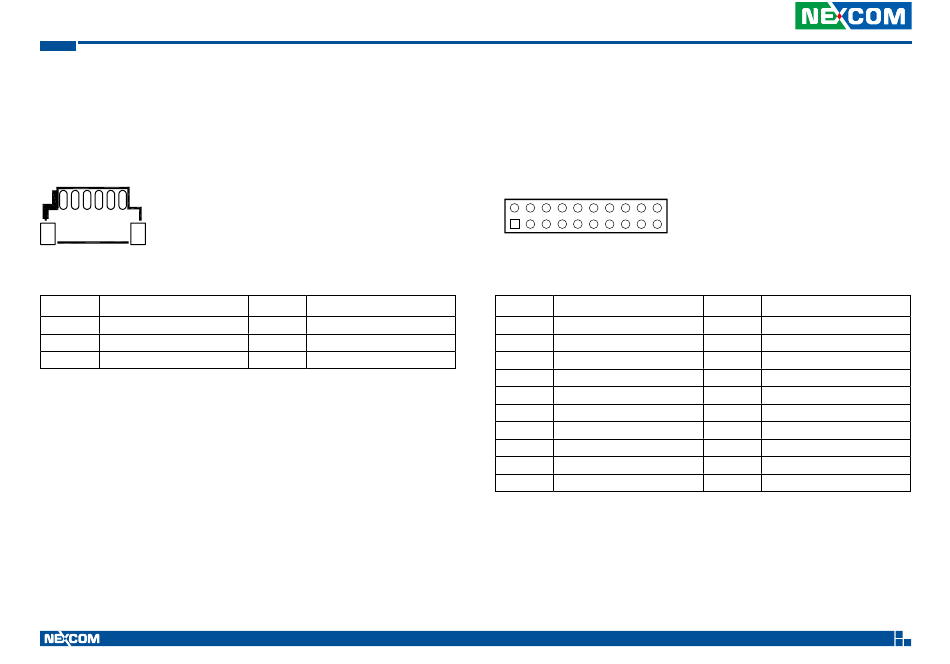

Audio Phone Jack
Connector size: 1 x 6 = 6-pin header
Connector location: CN1 and CN2
1
6
Pin
Definition
1
Front_out_L / Surr_out_L
3
Front_out_R / Surr_out_R
5
MIC_JD
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
Front_out_JD / Surr_out_JD
4
MIC_L / MIC_R
6
AGND
HDMI Connector
Connector size: 2 x 10 = 20-pin header
Connector location: JP1
2
1
Pin
Definition
1
HDMI_GND
3
HDMI_P5V
5
HDMI_SDA
7
NC
9
HDMI_CLK_N
11
HDMI_CLK_P
13
GND
15
HDMI_TX1N
17
HDMI_TX1P
19
GND
19
20
19
Pin
Definition
2
HDMI_HPD
4
GND
6
HDMI_SCL
8
NC
10
GND
12
HDMI_TX0N
14
HDMI_TX0P
16
GND
18
HDMI_TX2N
20
HDMI_TX2P
VTC 7252-7C4IP User Manual
