Chapter 2: Jumpers and Connectors

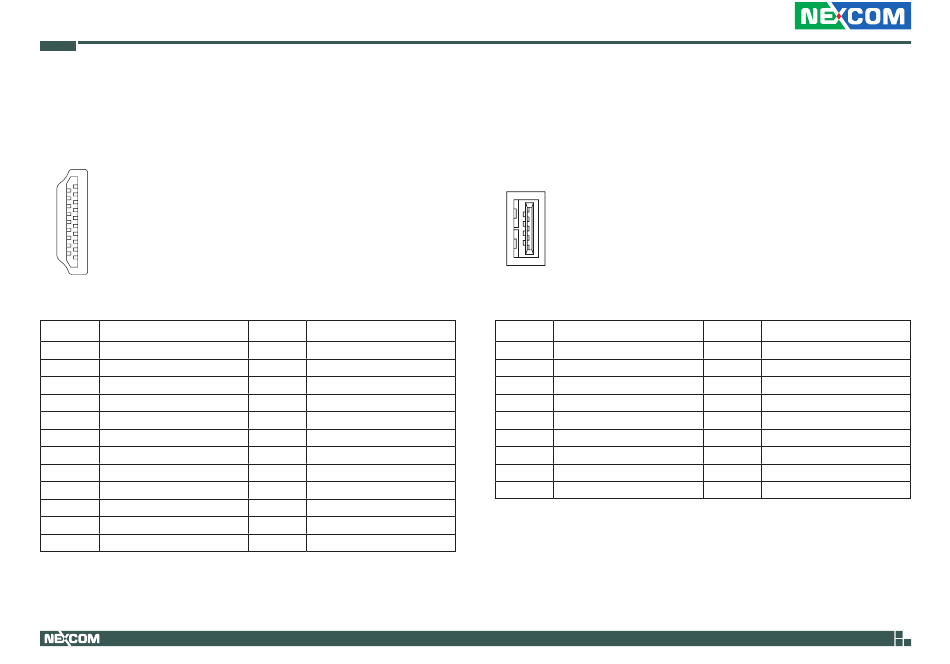

HDMI

Connector type: HDMI port
Connector location: CN5
19
18
2
1
Pin Definition
1 HDMI_DATA2_P
3 HDMI_DATA2_N
5 GND
7 HDMI_DATA0_P
9 HDMI_DATA0_N
11 GND
13 NC
15 HDMI_CTRL_CLK
17 GND
19 HDMI_HPD_R
MH1 CHASSIS_GND
MH3 CHASSIS_GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 HDMI_DATA1_P
6 HDMI_DATA1_N
8 GND
10 HDMI_CLK_P
12 HDMI_CLK_N
14 NC
16 HDMI_CTRL_DATA
18 VCC5_HDMI
MH2 CHASSIS_GND
MH4 CHASSIS_GND

USB 3.0 Port

Connector type: USB 3.0 port, Type A
Connector location: CN6
9
1
4
5
Pin Definition
1 USB3_5V
3 HUBUSB_DP1_C
5 USB3_RX0_N_C
7 GND
9 USB3_TX0_P_C
11 USB_1N_C
13 GND
MH1 FRONT_GND
MH3 FRONT_GND
14
Pin Definition
2 HUBUSB_DM1_C
4 GND
6 USB3_RX0_P_C
8 USB3_TX0_N_C
10 P5V_OC01_C
12 USB_1P_C
MH2 FRONT_GND
MH4 NC
