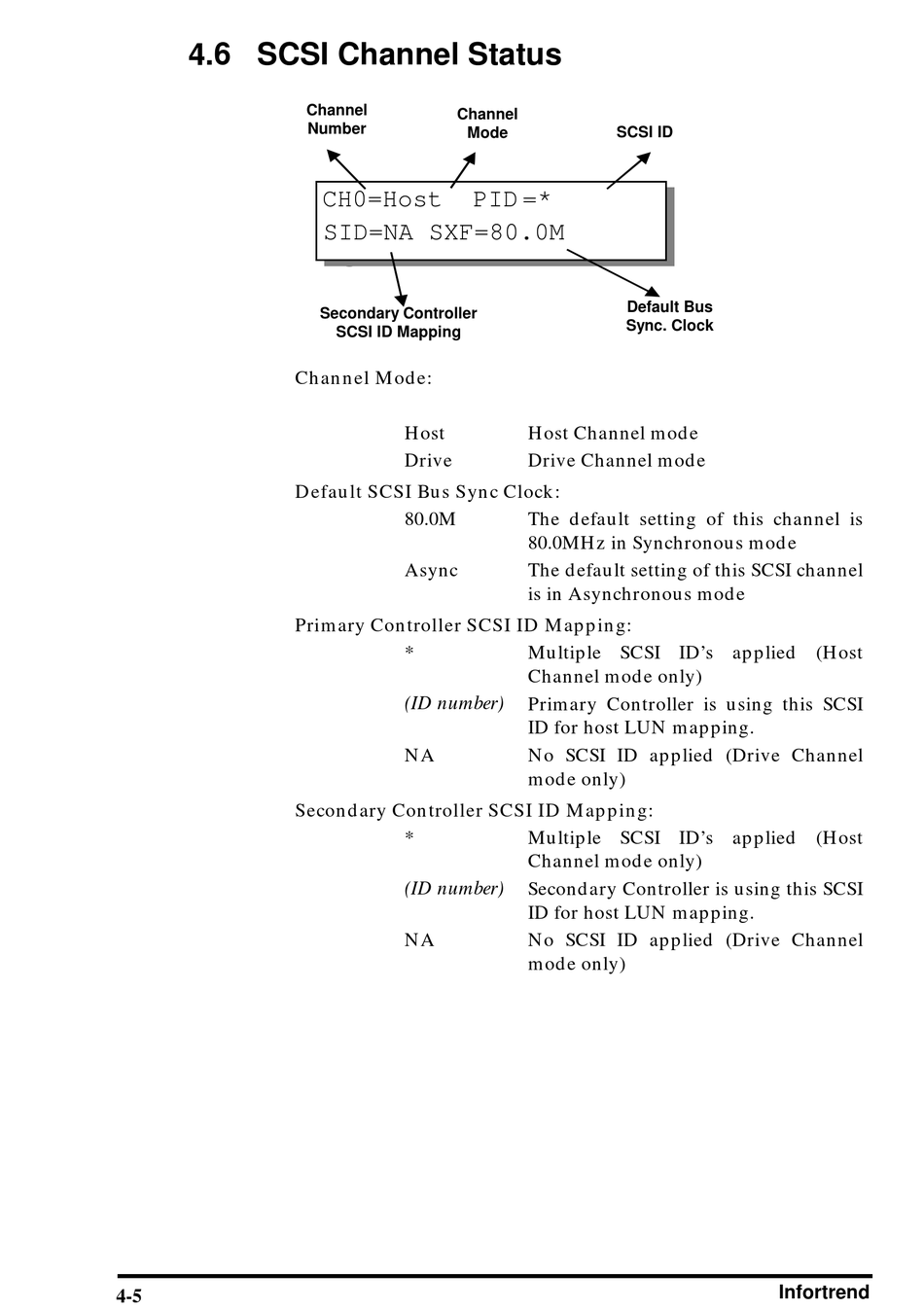

4.6 SCSI Channel Status

4-5
Channel
Channel
Number
Mode
CH0=Host
CH0=Host =
SID=NA SXF=80.0M
SID=NA
Secondary Controller
SCSI ID Mapping
Channel Mode:
Host
Drive
Default SCSI Bus Sync Clock:
80.0M
Async
Primary Controller SCSI ID Mapping:
*
(ID number)
NA
Secondary Controller SCSI ID Mapping:
*
(ID number)
NA
SCSI ID
PID =*
Default Bus
Sync. Clock
Host Channel mode
Drive Channel mode
The default setting of this channel is
80.0MHz in Synchronous mode
The default setting of this SCSI channel
is in Asynchronous mode
Multiple SCSI ID's applied (Host
Channel mode only)
Primary Controller is using this SCSI
ID for host LUN mapping.
No SCSI ID applied (Drive Channel
mode only)
Multiple SCSI ID's applied (Host
Channel mode only)
Secondary Controller is using this SCSI
ID for host LUN mapping.
No SCSI ID applied (Drive Channel
mode only)
