Maximum Queued I/O Count:

This function allows you to configure the maximum number of I/O
queue the controller can accept from the host computer.

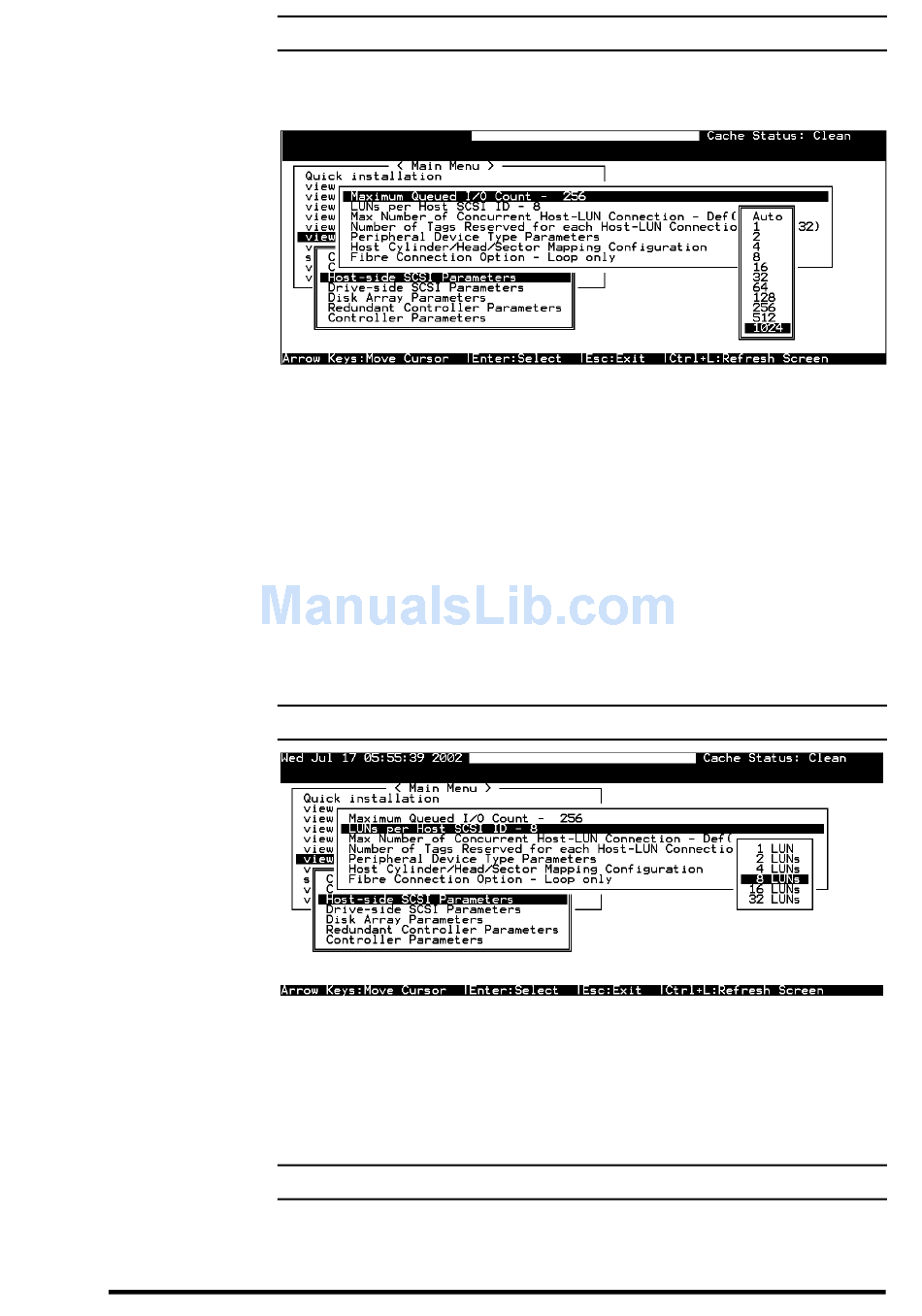

Choose "Host-side SCSI Parameters," then press [ENTER]. Choose
"Maximum Queued I/O Count," then press [ENTER]. A list of
available selections will appear. Move cursor bar to an item, then
press [ENTER].
confirm the setting.
The controller supports the following Host-side SCSI configurations:
"Maximum Queued I/O Count," "LUNs per Host SCSI ID," "Num
of Host-LUN Connect," "Tag per Host-LUN Connect," "Peripheral
Dev Type Parameters," and "Cyl/Head/Sector Mapping Config."

LUNs per Host SCSI ID

Choose "LUNs per Host SCSI ID," then press [ENTER]. A list of
selections will appear.
[ENTER]. Choose Yes in the dialog box that follows to confirm the
setting.

LUN Applicability:

If no logical drive has been created and mapped to a host LUN, and
the RAID controller is the only device connecting to the host SCSI
card, usually the operating system will not load the driver for the
9-13
Choose Yes in the dialog box that follows to
Move cursor bar to an item, then press
