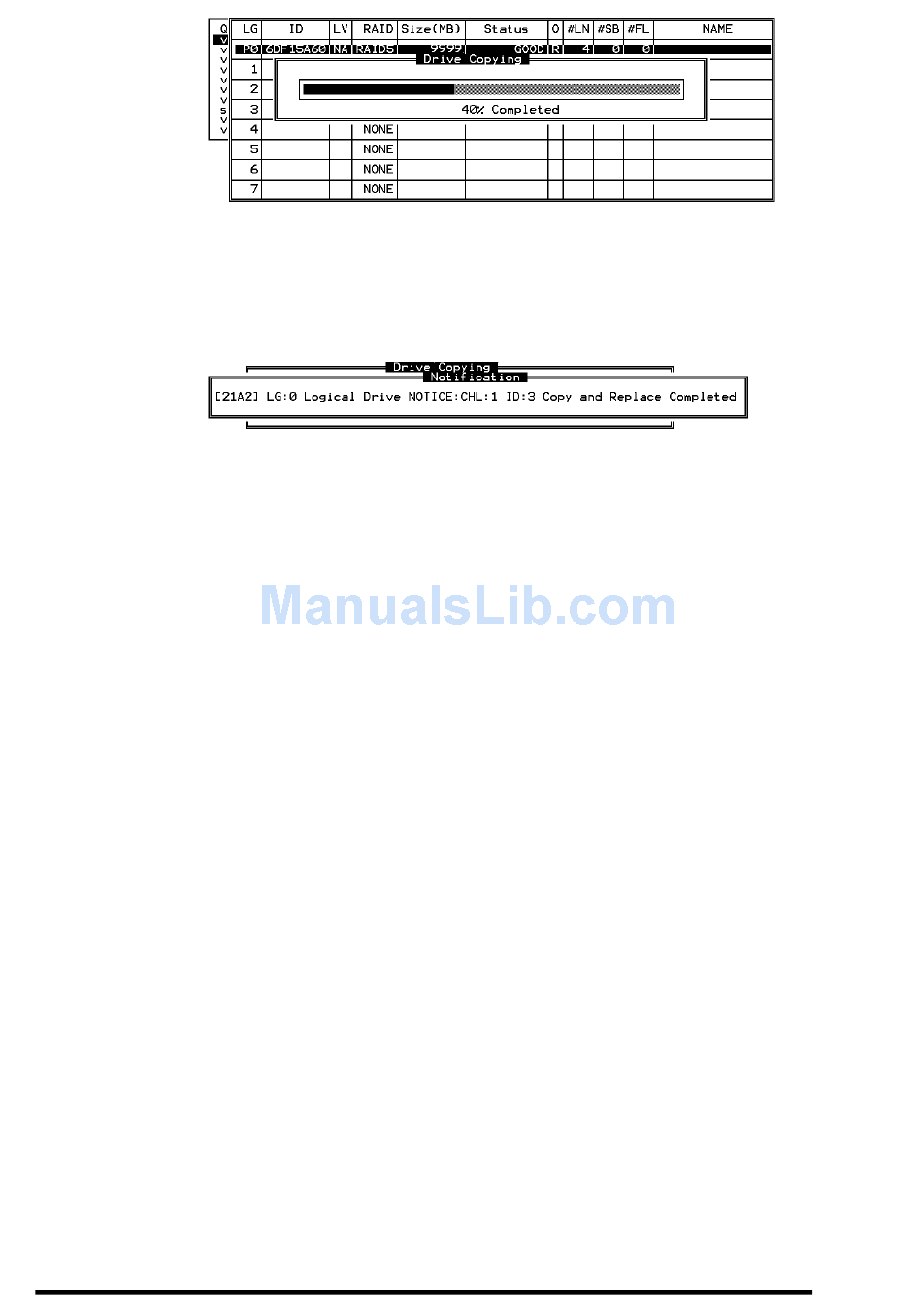

Completion of the Copy and Replace process will be indicated by a
notification message. Follow the same method to copy and replace
every member drive.
Drive" to make use of the added capacity, and then map the
additional capacity to a Host LUN.
12.4 Making Use of the Added Capacity:
Expand Logical Drive
In the following example, the logical drive is originally composed of
three member drives and each member drive has the capacity of 1
Gigabyte. "Copy and Replace" has been performed on the logical
drive and each of its member drives has been replaced by a new
drive with the capacity of 2 Gigabytes. The next step is to perform
"Expand Logical Drive" to utilize the additional capacity brought by
the new drives.
1.
2.
3.
Array Expansion
Select "View and Edit Logical Drives" from the main menu and
select the logical drive with its members copied and replaced.
Select "Expand Logical Drive" in the sub-menu and press
[ENTER] to proceed. A confirming box will appear.
Proceed by pressing [ENTER] or entering any value no larger
than the "maximum drive expand capacity" and press [ENTER].
You may now perform "Expand Logical
12-9
