Configuring the Array:

2.2
2.2.1

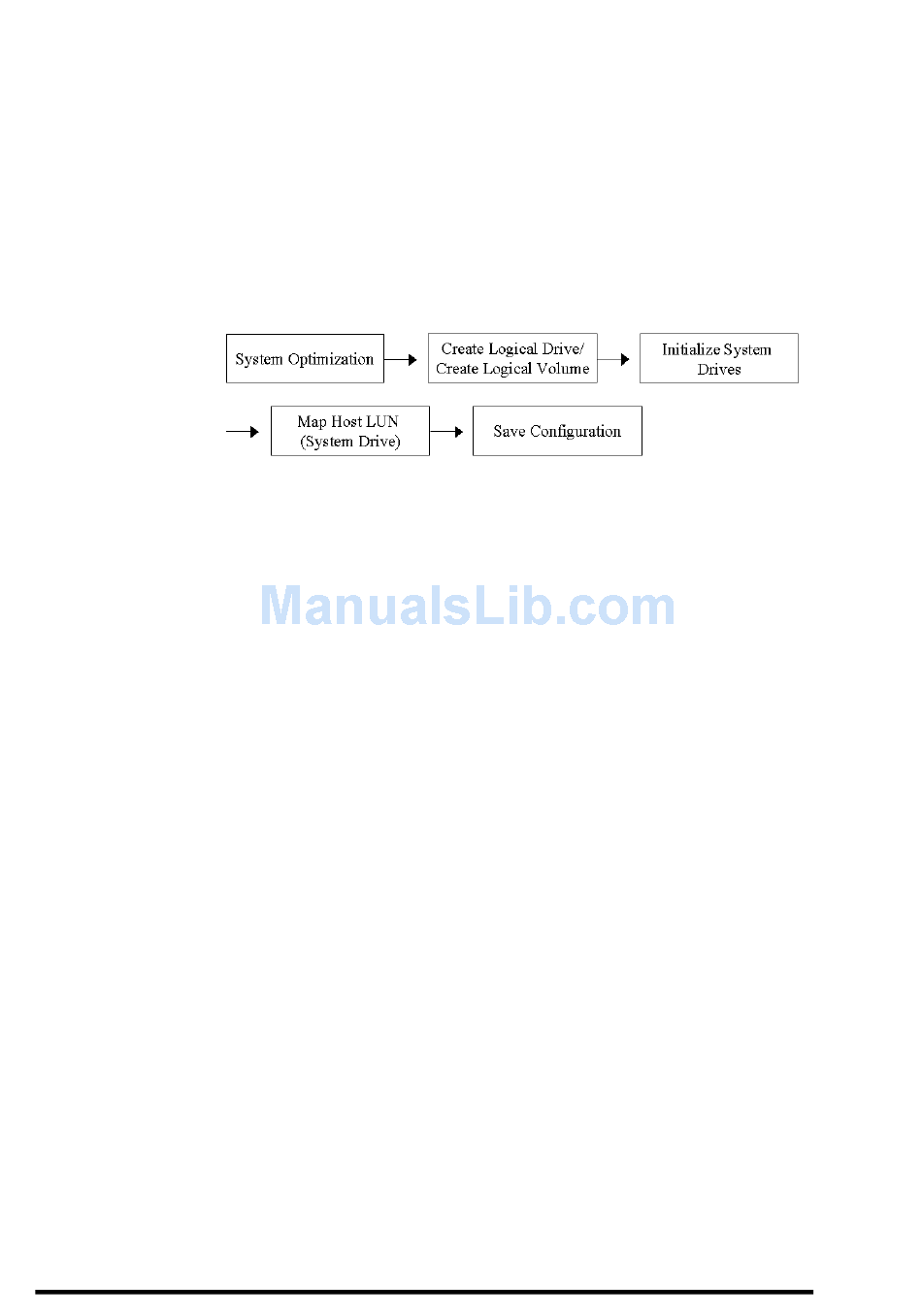

Here is a flowchart illustrating basic steps to be taken when
configuring a RAID system.
completed before any configuration takes place.
Figure 2 - 2
Drives must be configured and the controller properly initialized
before a host computer can access the storage capacity.
1.
2.
3.
4.
RAID Planning

Starting a RAID System

Array Configuration Process
Use the LCD panel, terminal program, or the RAIDWatch
manager to start configuring your array.
When powered on, the controller scans all the hard drives that
are connected through the drive channels. If a hard drive is
connected after the controller completes initialization, use the
"Scan SCSI Drive" function to let the controller recognize its
presence.
Optimize controller's parameters for your applications.
Configure one or more logical drives to contain your hard drives
based on the desired RAID level, and/or partition the logical
drive or logical volume into one or several partitions.
Hardware installation should be
