Assignments," then press [ENTER]. Choose Yes and press [ENTER] to
confirm reassignment to the Secondary Controller.

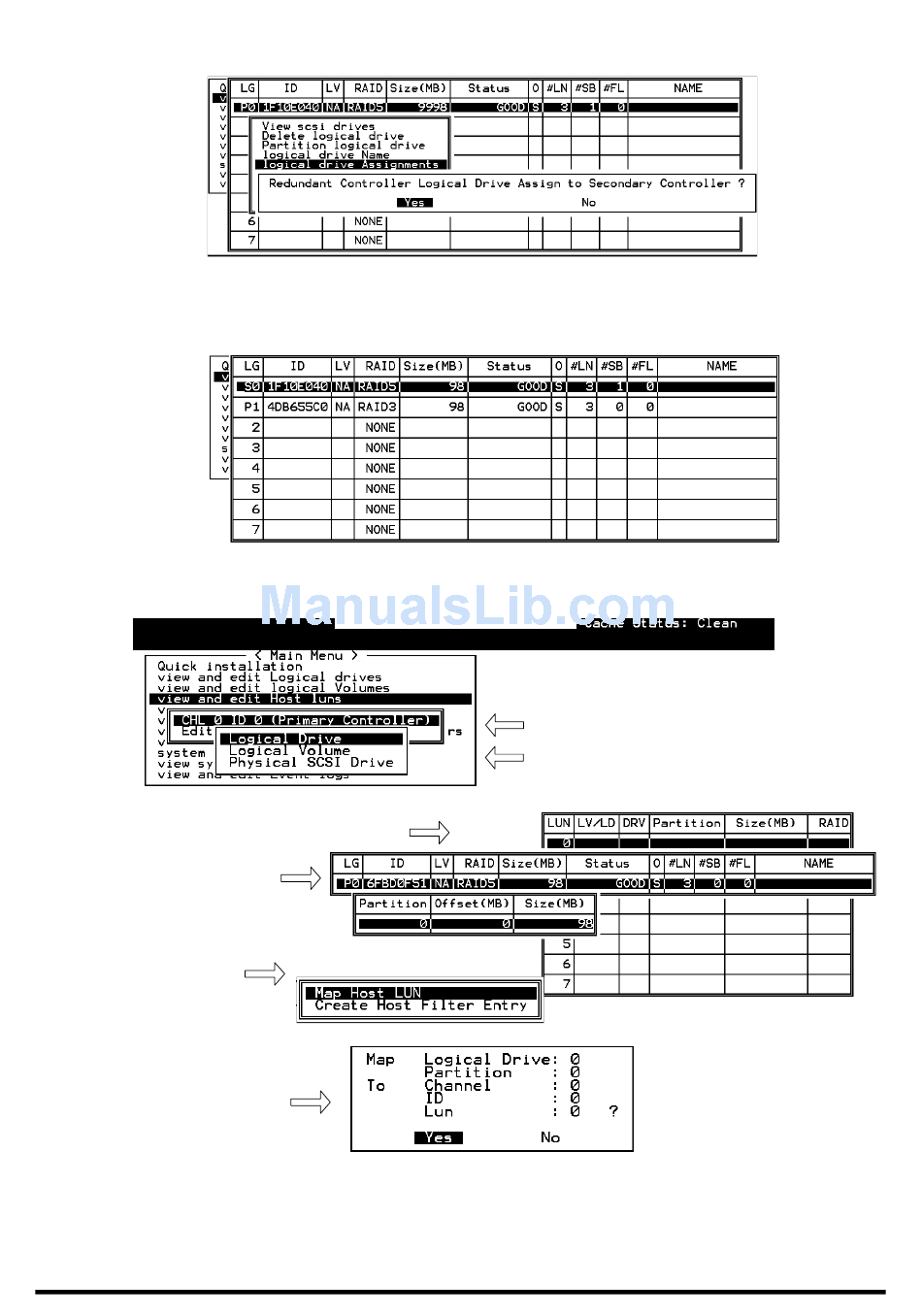

The reassignment is evident from the "View and Edit Logical Drives" screen.
"S0" indicates that the logical drive is logical drive 0 assigned to the
Secondary Controller.

Mapping a Logical Drive/Logical Volume to the Host LUNs

Select partition
Mapping optioin
Confirming mapping
scheme
10-30
Select LUN number
Choose "host channel-ID"
Choose mapping to which "logical unit"
