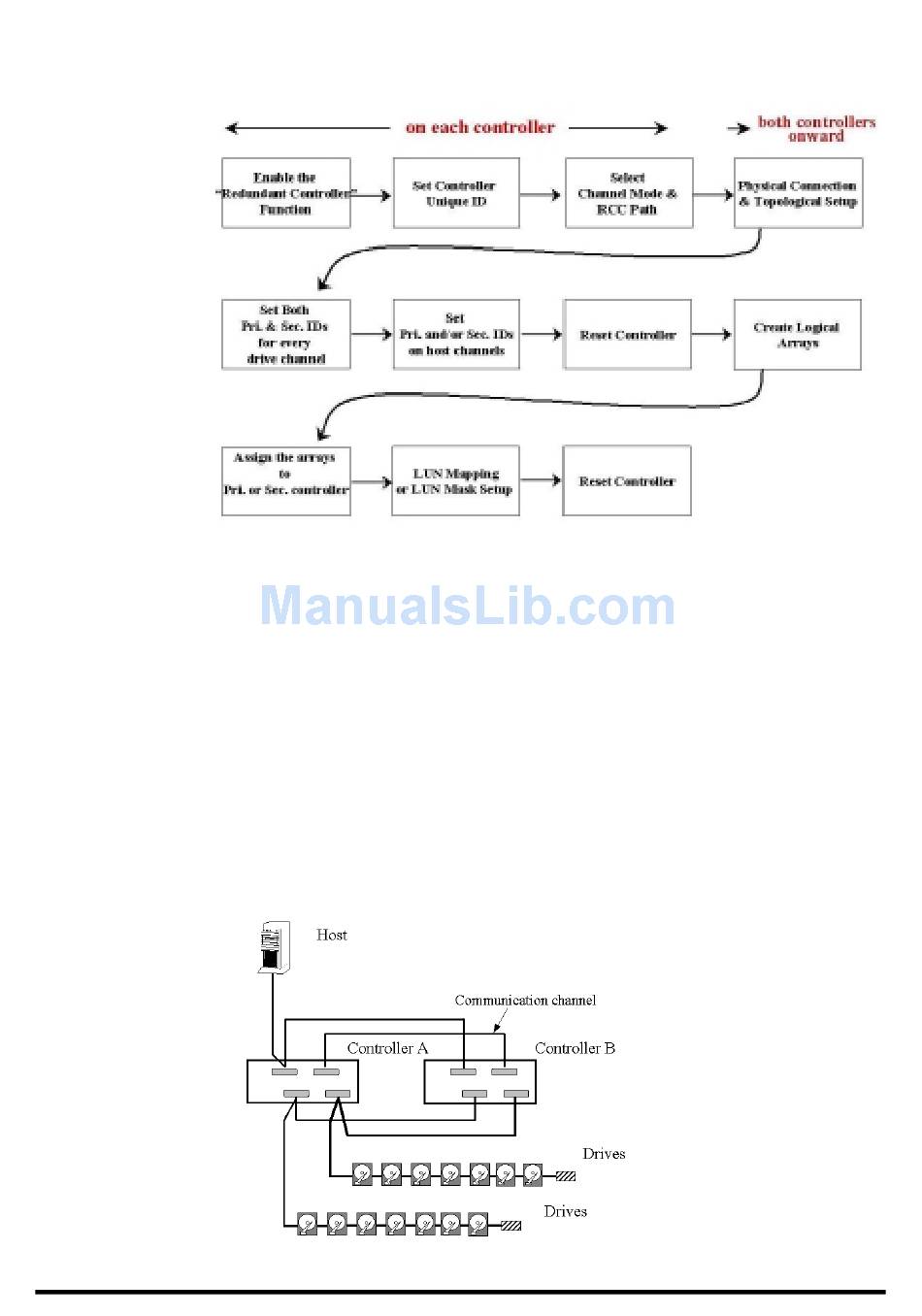

10.1.1 Setup Flowchart

Figure 10 - 1
NOTE
pre-set IDs for users' ease of configuration. It is, however, always best to
check these IDs before proceeding with configuration.
10.1.2 Considerations Related to Physical
10-2
Redundant Controller Configuration Flowchart
that some of Infortrend's dual-controller configurations come with
Connection

SCSI-Based Controllers

Figure 10 - 1 Dual-Controller Using SCSI-Based Controllers
Infortrend
