Upgrade the Firmware Binary Only

1. Connect to the RAID system locally or from a remote host using
2. Provide the firmware filename to the RAIDWatch Manager. It
3. Shutdown the system which is accessing the RAID, then reset
Upgrading Firmware Using RS-232C Terminal
Emulation
The firmware can be downloaded to the RAID controller by using
an ANSI/VT-100 compatible terminal emulation program.
Whichever terminal emulation program is used must support the
ZMODEM file transfer protocol. The following example uses the
HyperTerminal in Windows NT
programs (e.g., Telix and PROCOMM Plus) can perform the
firmware upgrade as well.
C-4
RAIDWatch Manager. While connected to the RAID system,
there will be icon(s) with IP address specified on the left of the
menu screen. Select by double-clicking the icon of the RAID
system which firmware is to be upgraded. Select the controller
icon and then select the "RAID system-to-host bus" (usually
appears as In-band SCSI or PCI bus...).
RAID-to-host-bus to connect to the desired controller. Choose
the "RAID view" icon on the controller panel. The RAID view

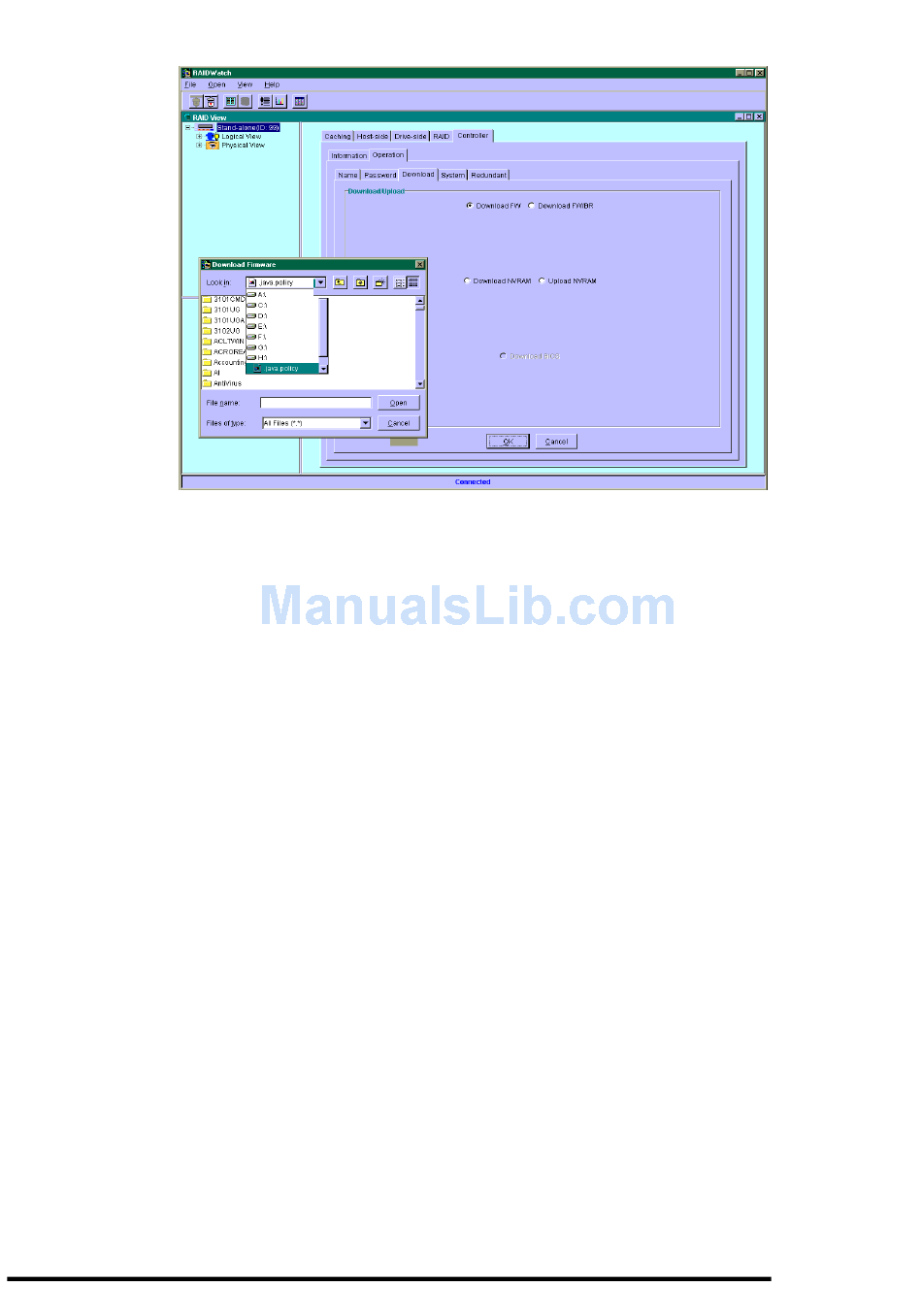

window will appear. Choose "Controller" > "Download" -> and
click among the selections "Download FW" (Firmware). If both
boot record and firmware are desired to upgrade, choose
"Download Firmware".
will start to download the firmware to the controller.
the controller in order to use the new downloaded firmware.
Double-click the
. Other terminal emulation
®
