SCSI Channel's Status

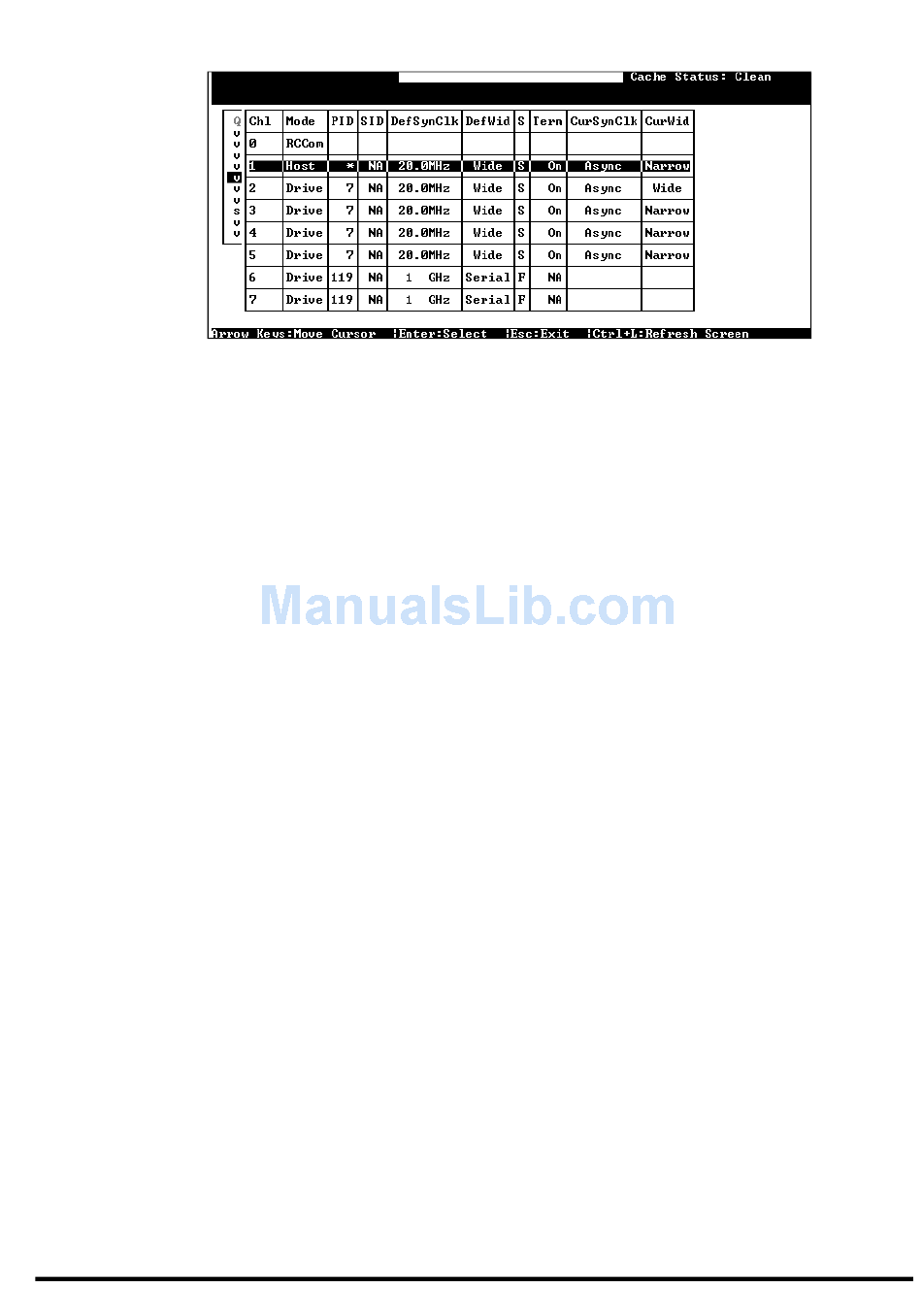

Terminal Screen Messages
Chl
SCSI channel number
Mode
Channel mode
RCCom
Host
Drive
PID
IDs managed by the Primary Controller
*
(ID
number)
SID
IDs managed by the Secondary Controller
*
(ID
number)
NA
DefSynClk
Default SCSI bus synchronous clock:
??.?M
Async.
DefWid
Default SCSI Bus Width:
Wide
Narrow
S
Signal:
S
Single-ended
L
LVD
F
Fibre
Redundant controller communication channel
Host Channel mode
Drive Channel mode
Multiple IDs were applied (Host Channel mode only)
Host channel:
Specific IDs managed by the Primary Controller for host
LUN mapping
Drive channel:
Specific ID reserved for the channel processor on the
Primary controller
Multiple IDs were applied (Host Channel mode only)
Host channel:
Specific IDs managed by the Secondary Controller for
host LUN mapping
Drive channel:
Specific ID reserved for the channel processor on the
Secondary controller; used in redundant controller mode
No SCSI ID applied
The default setting of the channel is ??.? MHz in
Synchronous mode.
The default setting of the channel is Asynchronous mode.
16-bit SCSI
8-bit SCSI
6-7
