Sync - Roland SH-4d Owner's Manual

Creating a Tone
Parameter Controllers
LFO 2 Phase –
Pos

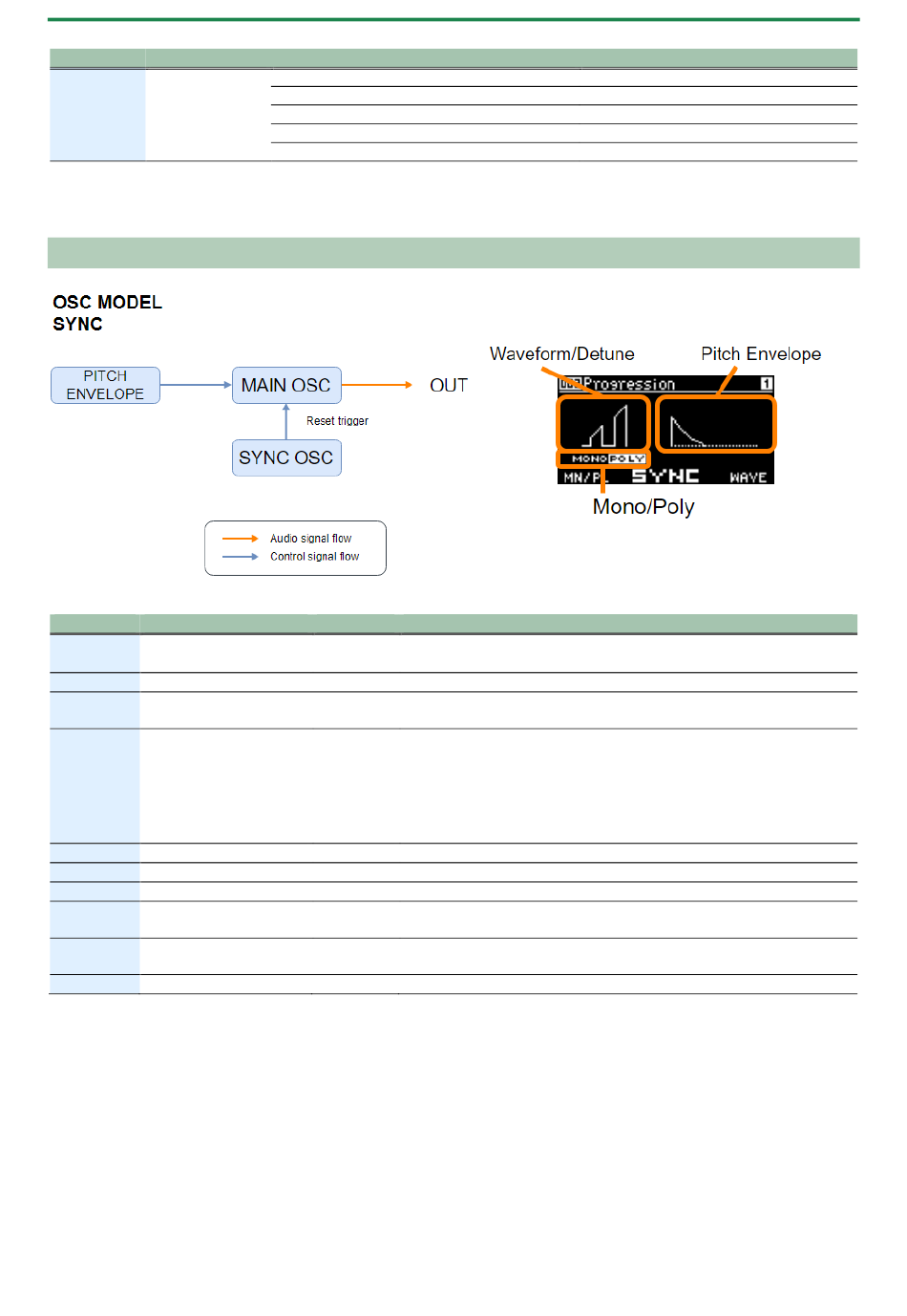

SYNC

Use the [2] knob to set the waveform.
Parameter Controllers
Coarse PITCH
Tune
Fine Tune SHIFT+PITCH
TIMBRE
PWM Depth
SHIFT+TIMBRE
Pulse Width
Detune [OSC 1] slider
PEnv Attack [OSC 2] slider
PEnv Decay [OSC 3] slider
[OSC 4] slider
PEnv Depth
[OSC 1] and [OSC 2]
Mono/Poly
buttons
Sync [OSC 4] button
30
Value
Sets the LFO 2 start phase value when Key Trigger is "ON".
0
1
2
3
Value
-24–+24 Specifies the pitch in semitone steps (maximum ±2 octaves).
-50–+50 Specifies the pitch in cents (maximum ±50 cents).
0–63 Sets how much the LFO is applied (depth) to the PW (pulse width).
The pulse width is modulated according to the LFO settings.
0–63 This effect changes the duty ratio of the pulse width to alter the
waveform.
You can use this effect with other waveforms besides SQR (square
wave).
* A value of zero results in a 50:50% duty ratio.
0–48 Sets the pitch of the synchronized oscillator in semitones.
0–1023 Sets the attack time of the pitch envelope.
0–1023 Sets the decay time of the pitch envelope.
0–100 Sets the intensity of the pitch envelope.
Larger values produce a greater change with the pitch envelope.
MONO, Sets whether the tones play in polyphonic (POLY) or monophonic
POLY (MONO) mode.
OFF, ON Turns oscillator sync on/off.
Explanation
1 cycle
1/4 cycle
1/2 cycle
3/4 cycle
Explanation
