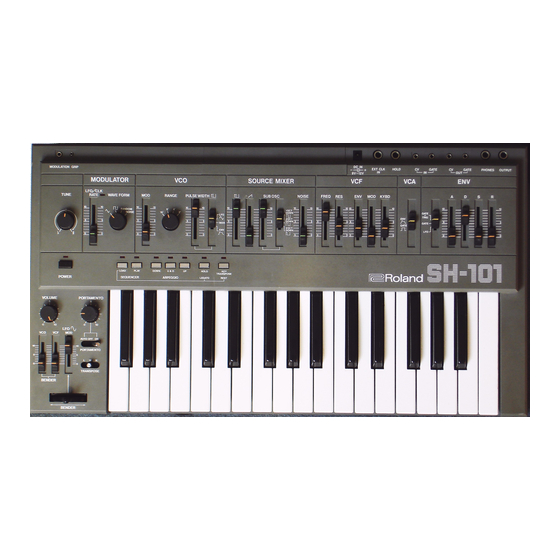

Roland SH-101 Parameter Manual
  1. Manuals
  2. Brands
  3. Roland Manuals
  4. Synthesizer
  5. SH-101
  6. Parameter manual

Roland SH-101 Parameter Manual

Model expansion
Hide thumbs Also See for SH-101:

Advertisement

Quick Links

Download this manual
SH-101
Model Expansion
Parameter Guide
© 2021 Roland Corporation
© 2021 Roland Corporation
01
01

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH-101 and is the answer not in the manual?

Questions and answers

Related Manuals for Roland SH-101

Summary of Contents for Roland SH-101

  • Page 1 SH-101 Model Expansion Parameter Guide © 2021 Roland Corporation © 2021 Roland Corporation...
  • Page 2 This document explains about the parameters and setting screens for the ZENOLOGY Pro Model Expansion. The parameter names, the order in which they appear and other information may differ, depending on the product.
  • Page 3 System System CONDITION KEY MODE Simulates the changes that occur as a unit ages. [SOLO] button PITCH DRIFT Sound is produced monophonically. Adjusts the slight pitch drift that occurs when notes are [POLY] button played on an analog synthesizer. Sound is produced polyphonically. [UNISON] button Sound is produced in unison.
  • Page 4 MODULATOR MODULATOR [WAVEFORM] knob (LFO WAVEFORM) Selects the waveform of the LFO. TRI, SQR, S&H RATE (LFO RATE) Specifies the rate of the LFO cycle.

  • Page 5: Pulse Width

    [RANGE] knob (OSC RANGE) (OSC LFO MOD) Specifies the octave of the oscillator. Adjusts the depth at which the LFO modulates the OSC. 16’ , 8’ , 4’ , 2’ PULSE WIDTH (PULSE WIDTH MOD) PW MODE = MAN: Adjusts the pulse width. PW MODE = LFO/ENV: Adjusts the modulation depth.

  • Page 6: Source Mixer

    SOURCE MIXER SOURCE MIXER SUB OSC (SUB OSC LEVEL) Adjusts the volume of the sub oscillator. [1OCT DOWN] [2OCT DOWN] [2OCT DOWN (small pulse width)] buttons (SUB OSC) Specifies the SUB OSC type. (PWM wave) NOISE (PW LEVEL) (NOISE LEVEL) Adjusts the volume of the PWM wave.

  • Page 7: [Cutoff] Knob

    [R] [M] [S] buttons (VINTAGE FLT TYPE) If a vintage type model is selected, these buttons change the type of filter. [R] models a Roland filter, and [M] and [S] model vintage synthesizers made by other companies. [CUTOFF] knob (FLT ENV DEPTH) Specifies the cutoff frequency of the low-pass filter.
  • Page 8 [LEVEL] knob [ENV] [GATE] button (AMP LEVEL) (AMP ENV SEL) Adjusts the volume of the tone. Specifies whether the volume is controlled by the ENV (ENV) or stays at a fixed volume as long as the key is held down (GATE).
  • Page 9 [GATE+TRIG] [GATE] [LFO] buttons (ENV MODE) Specifies what causes the envelope to attack. Explanation Explanation Button Button GATE+TRIG Attack each time a key is pressed. Attack repeatedly at each cycle of the LFO as long as the key is held. Attack when a key is pressed anew.

  • Page 10: Mfx Parameters

    [MFX] button [MFX TYPE] indication [MFX LEVEL] knob Turns MFX on/off. Shows the currently selected Adjusts the MFX output level. MFX name. MFX parameters The edit screen is different for each MFX type.
  • Page 11 Controller Controller BEND [PIT] knob MOD [LFO] knob (BEND PITCH) (MODULATION LFO) Specifies the range of pitch change produced by pitch Specifies the amount of LFO applied by modulation. bend. BEND [FILT] knob (BEND FILTER) Specifies the range of filter change produced by pitch bend.
