MFX Parameters

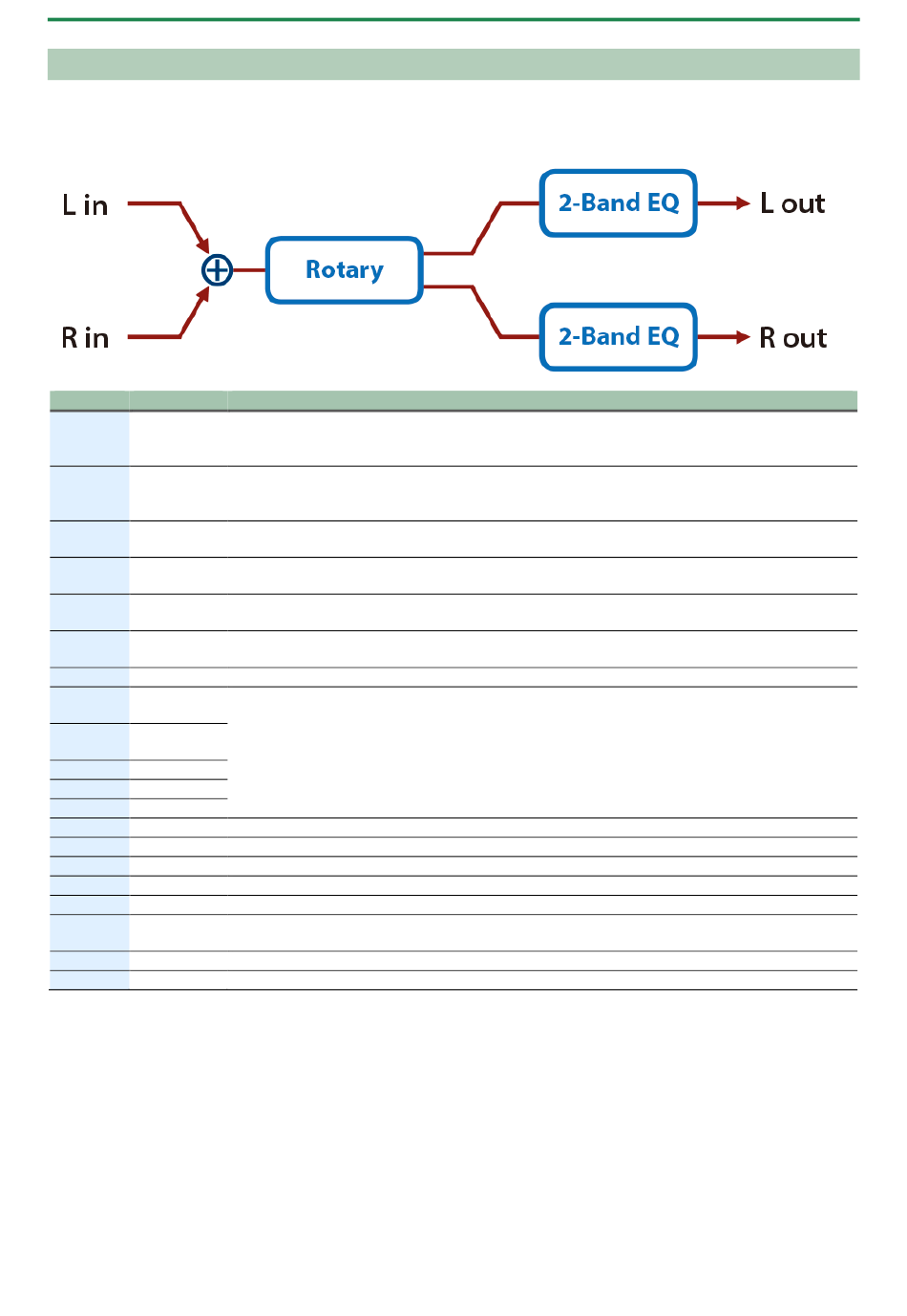

VK Rotary

This type provides modified response for the rotary speaker, with the low end boosted further.
This effect features the same specifications as the VK-7's built-in rotary speaker.
Parameter Value
SLOW, FAST
Speed
OFF, ON
Brake
0.05–10.00
Wf Slow
[Hz]
0.05–10.00
Wf Fast
[Hz]
0–127
Wf Trs Up
0–127
Wf Trs Dw
Wf Level 0–127
0.05–10.00
Tw Slow
[Hz]
0.05–10.00
Tw Fast
[Hz]
Tw Trs Up 0–127
Tw Trs Dw 0–127
Tw Level 0–127
Spread 0–10
Low Gain -15–+15 [dB]
High Gain -15–+15 [dB]
Level 0–127
OD Switch OFF, ON
0–127
OD Gain
OD Drive 0–127
OD Level 0–127
118
Rotational speed of the rotating speaker
SLOW: Slow
FAST: Fast
Switches the rotation of the rotary speaker.
When this is turned on, the rotation will gradually stop. When it is turned off, the rotation will
gradually resume.
Low-speed rotation speed of the woofer
High-speed rotation speed of the woofer
Adjusts the rate at which the woofer rotation speeds up when the rotation is switched from Slow to
Fast.
Adjusts the rate at which the woofer rotation speeds up when the rotation is switched from Fast to
Slow.
Volume of the woofer
Settings of the tweeter
The parameters are the same as for the woofer.
Sets the rotary speaker stereo image.
Amount of boost/cut for the low-frequency range
Amount of boost/cut for the high-frequency range
Output Level
Overdrive on/off
Overdrive input level
Higher values will increase the distortion.
Degree of distortion
Volume of the overdrive
Explanation
