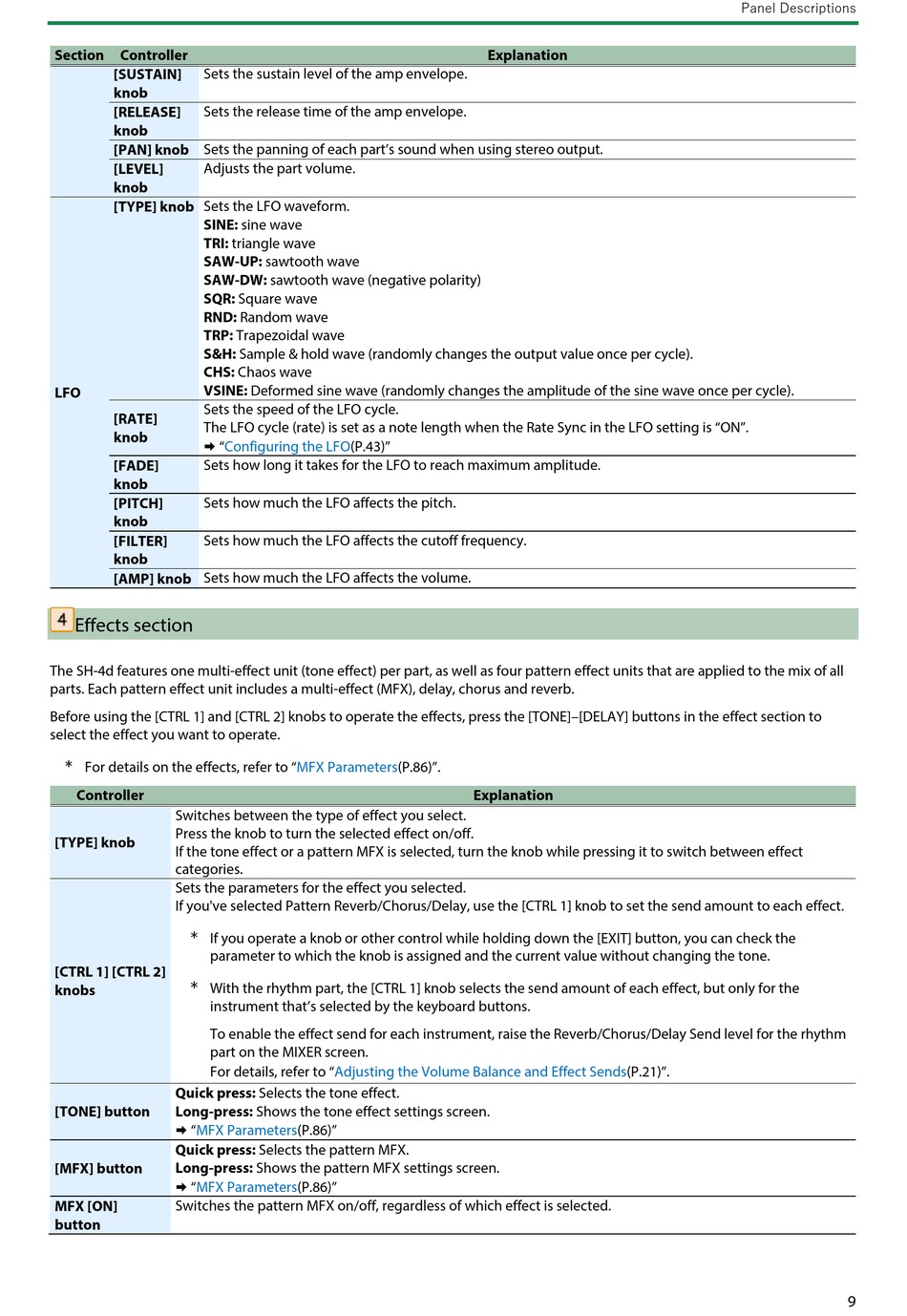

Section Controller
[SUSTAIN] Sets the sustain level of the amp envelope.
knob
[RELEASE] Sets the release time of the amp envelope.
knob
[PAN] knob Sets the panning of each part's sound when using stereo output.
[LEVEL] Adjusts the part volume.
knob
[TYPE] knob Sets the LFO waveform.
SINE: sine wave
TRI: triangle wave
SAW-UP: sawtooth wave
SAW-DW: sawtooth wave (negative polarity)
SQR: Square wave
RND: Random wave
TRP: Trapezoidal wave
S&H: Sample & hold wave (randomly changes the output value once per cycle).
CHS: Chaos wave
VSINE: Deformed sine wave (randomly changes the amplitude of the sine wave once per cycle).
LFO
Sets the speed of the LFO cycle.
[RATE]
The LFO cycle (rate) is set as a note length when the Rate Sync in the LFO setting is "ON".
knob
Ø
"Configuring the
[FADE] Sets how long it takes for the LFO to reach maximum amplitude.
knob
[PITCH] Sets how much the LFO affects the pitch.
knob
[FILTER] Sets how much the LFO affects the cutoff frequency.
knob
[AMP] knob Sets how much the LFO affects the volume.

Effects section

The SH-4d features one multi-effect unit (tone effect) per part, as well as four pattern effect units that are applied to the mix of all
parts. Each pattern effect unit includes a multi-effect (MFX), delay, chorus and reverb.
Before using the [CTRL 1] and [CTRL 2] knobs to operate the effects, press the [TONE]–[DELAY] buttons in the effect section to
select the effect you want to operate.
* For details on the effects, refer to
Controller
Switches between the type of effect you select.
Press the knob to turn the selected effect on/off.
[TYPE] knob
If the tone effect or a pattern MFX is selected, turn the knob while pressing it to switch between effect
categories.
Sets the parameters for the effect you selected.
If you've selected Pattern Reverb/Chorus/Delay, use the [CTRL 1] knob to set the send amount to each effect.
* If you operate a knob or other control while holding down the [EXIT] button, you can check the
parameter to which the knob is assigned and the current value without changing the tone.
[CTRL 1] [CTRL 2]
* With the rhythm part, the [CTRL 1] knob selects the send amount of each effect, but only for the
knobs
instrument that's selected by the keyboard buttons.
To enable the effect send for each instrument, raise the Reverb/Chorus/Delay Send level for the rhythm
part on the MIXER screen.
For details, refer to
Quick press: Selects the tone effect.
[TONE] button Long-press: Shows the tone effect settings screen.
Ø
"MFX
Quick press: Selects the pattern MFX.
[MFX] button Long-press: Shows the pattern MFX settings screen.
Ø
"MFX
MFX [ON] Switches the pattern MFX on/off, regardless of which effect is selected.
button
LFO(P.43)"
"MFX Parameters(P.86)".
"Adjusting the Volume Balance and Effect
Parameters(P.86)"
Parameters(P.86)"
Explanation
Explanation
Sends(P.21)".
Panel Descriptions
