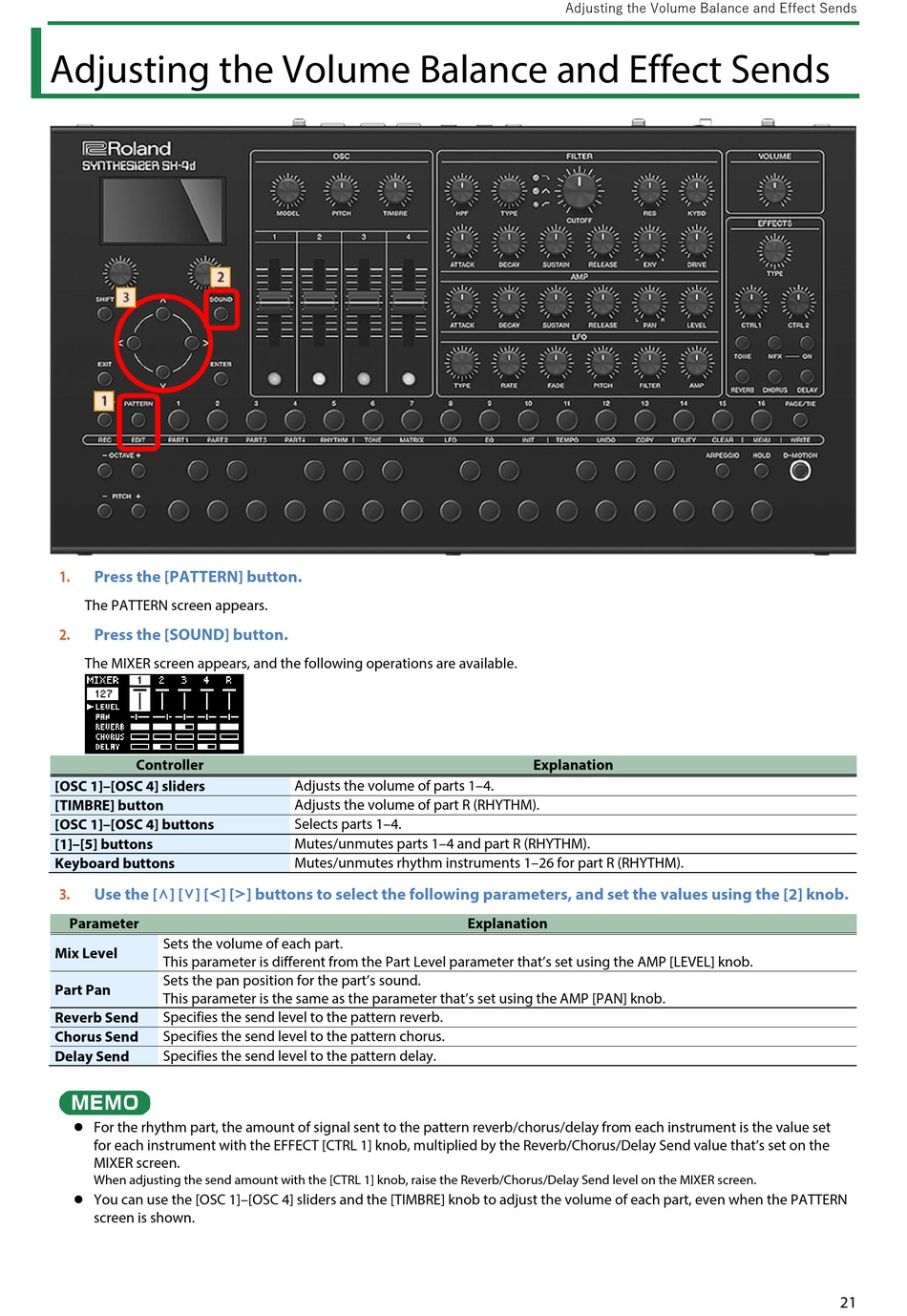

Adjusting the Volume Balance and Effect Sends

1. Press the [PATTERN] button.
The PATTERN screen appears.
2. Press the [SOUND] button.
The MIXER screen appears, and the following operations are available.
Controller
[OSC 1]–[OSC 4] sliders
[TIMBRE] button
[OSC 1]–[OSC 4] buttons
[1]–[5] buttons
Keyboard buttons
3. Use the [ä] [å] [ç] [æ] buttons to select the following parameters, and set the values using the [2] knob.
Parameter
Sets the volume of each part.
Mix Level
This parameter is different from the Part Level parameter that's set using the AMP [LEVEL] knob.
Sets the pan position for the part's sound.
Part Pan
This parameter is the same as the parameter that's set using the AMP [PAN] knob.
Reverb Send Specifies the send level to the pattern reverb.
Chorus Send Specifies the send level to the pattern chorus.
Specifies the send level to the pattern delay.
Delay Send
●
For the rhythm part, the amount of signal sent to the pattern reverb/chorus/delay from each instrument is the value set
for each instrument with the EFFECT [CTRL 1] knob, multiplied by the Reverb/Chorus/Delay Send value that's set on the
MIXER screen.
When adjusting the send amount with the [CTRL 1] knob, raise the Reverb/Chorus/Delay Send level on the MIXER screen.
●
You can use the [OSC 1]–[OSC 4] sliders and the [TIMBRE] knob to adjust the volume of each part, even when the PATTERN
screen is shown.
Adjusts the volume of parts 1–4.
Adjusts the volume of part R (RHYTHM).
Selects parts 1–4.
Mutes/unmutes parts 1–4 and part R (RHYTHM).
Mutes/unmutes rhythm instruments 1–26 for part R (RHYTHM).
