Roland SH-4d Owner's Manual page 31

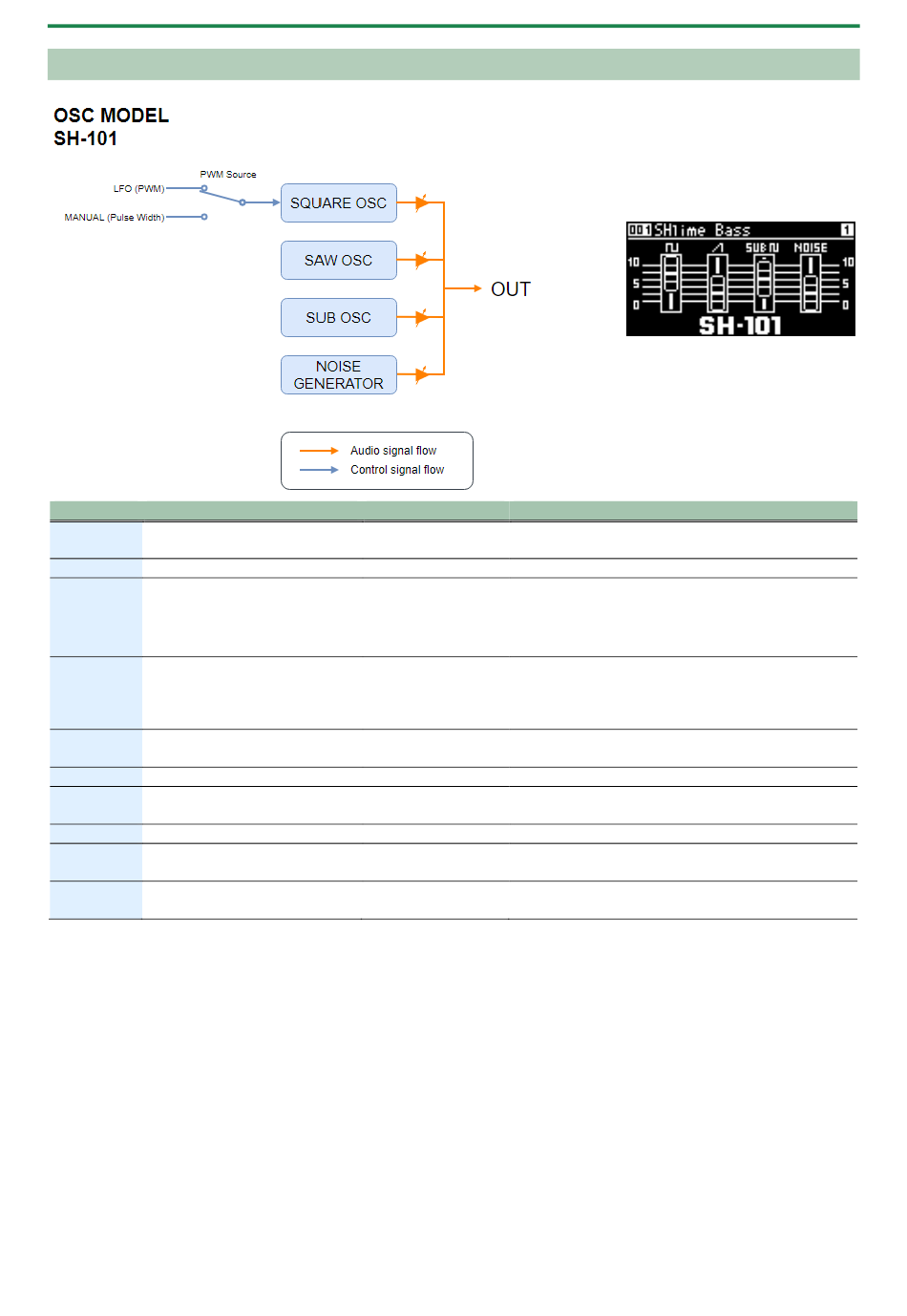

SH-101
Parameter Controllers
PITCH
Coarse Tune
Fine Tune SHIFT+PITCH
TIMBRE (when "PWM Source" is
set to "MANUAL")
Pulse Width
TIMBRE (when "PWM Source" is
set to "LFO")
PWM Depth
Square [OSC 1] slider
Level
Saw Level [OSC 2] slider
Sub Osc [OSC 3] slider
Level
Noise Level [OSC 4] slider
PWM [OSC 1] button
Source
Sub Osc [OSC 3] button
Wave
Value
-24–+24 Specifies the pitch in semitone steps (maximum ±2
octaves).
-50–+50 Specifies the pitch in cents (maximum ±50 cents).
0–63 Changes the duty ratio of the pulse width to alter the
waveform.
* A value of zero results in a 50:50% duty ratio.
0–63 Sets how much the LFO is applied (depth) to the PW
(pulse width) of the square wave.
The pulse width is modulated according to the LFO
settings.
0–127 Sets the square wave volume.
0–127 Sets the sawtooth wave volume.
0–127 Sets the sub-oscillator volume.
0–127 Sets the noise generator volume.
LFO, MANUAL Switches the function of the [TIMBRE] knob between
pulse width and PWM depth.
1OCT SQR, 2OCT SQR, Switches between sub-oscillator pitches and
2OCT PLS waveforms.
