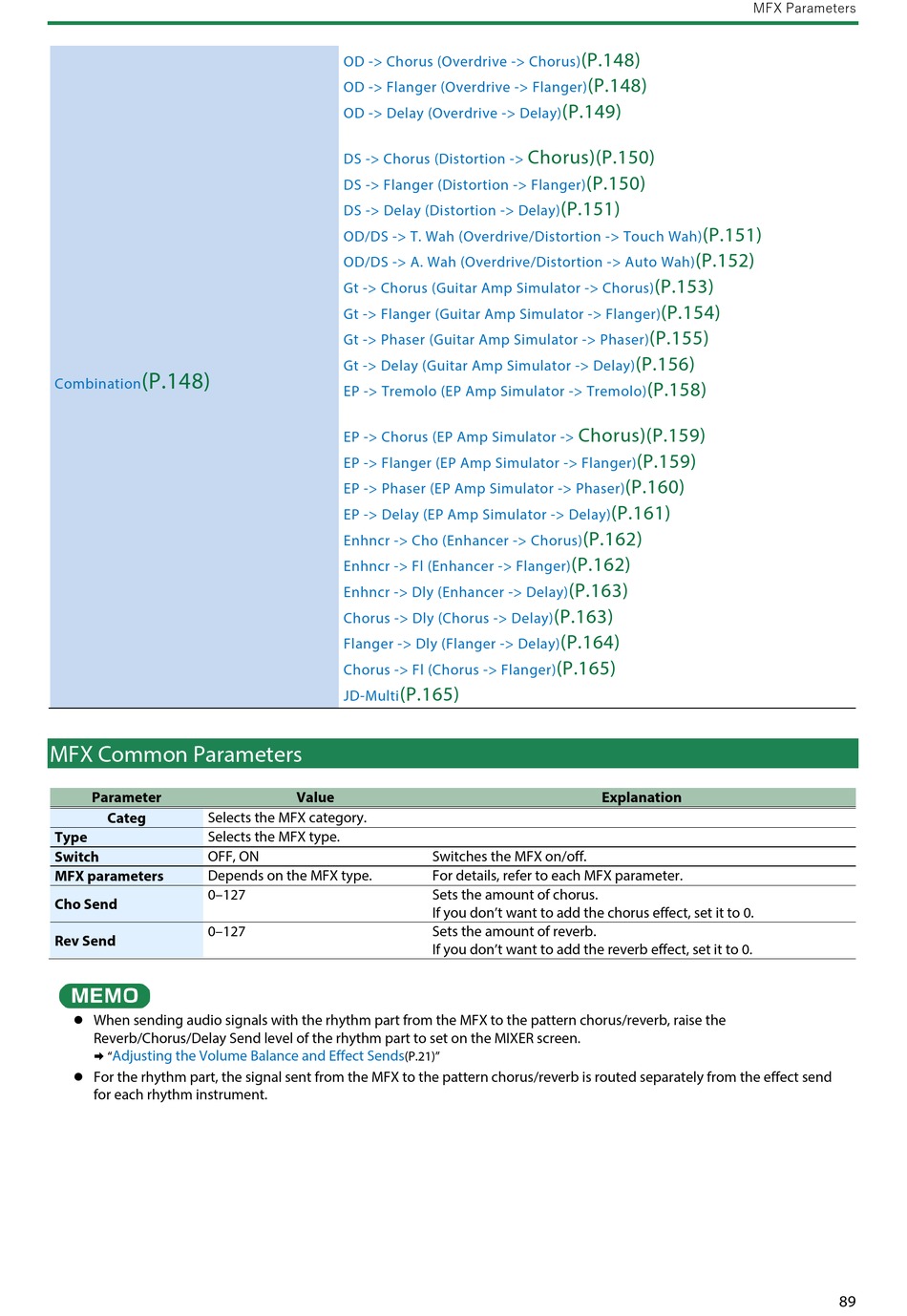

MFX Common Parameters

Parameter
Categ
Selects the MFX category.
Type
Selects the MFX type.
Switch
OFF, ON
MFX parameters
Depends on the MFX type.
0–127
Cho Send
0–127
Rev Send
When sending audio signals with the rhythm part from the MFX to the pattern chorus/reverb, raise the
Reverb/Chorus/Delay Send level of the rhythm part to set on the MIXER screen.
Ø "
Adjusting the Volume Balance and Effect Sends
For the rhythm part, the signal sent from the MFX to the pattern chorus/reverb is routed separately from the effect send
for each rhythm instrument.
OD -> Chorus (Overdrive -> Chorus)
OD -> Flanger (Overdrive -> Flanger)
OD -> Delay (Overdrive -> Delay)
DS -> Chorus (Distortion ->
DS -> Flanger (Distortion -> Flanger)
DS -> Delay (Distortion -> Delay)
OD/DS -> T. Wah (Overdrive/Distortion -> Touch Wah)
OD/DS -> A. Wah (Overdrive/Distortion -> Auto Wah)
Gt -> Chorus (Guitar Amp Simulator -> Chorus)
Gt -> Flanger (Guitar Amp Simulator -> Flanger)
Gt -> Phaser (Guitar Amp Simulator -> Phaser)
Gt -> Delay (Guitar Amp Simulator -> Delay)
EP -> Tremolo (EP Amp Simulator -> Tremolo)
EP -> Chorus (EP Amp Simulator ->
EP -> Flanger (EP Amp Simulator -> Flanger)
EP -> Phaser (EP Amp Simulator -> Phaser)
EP -> Delay (EP Amp Simulator -> Delay)
Enhncr -> Cho (Enhancer -> Chorus)
Enhncr -> Fl (Enhancer -> Flanger)
Enhncr -> Dly (Enhancer -> Delay)
Chorus -> Dly (Chorus -> Delay)
Flanger -> Dly (Flanger -> Delay)
Chorus -> Fl (Chorus -> Flanger)
(P.165)
JD-Multi
Value
Switches the MFX on/off.
For details, refer to each MFX parameter.
Sets the amount of chorus.
If you don't want to add the chorus effect, set it to 0.
Sets the amount of reverb.
If you don't want to add the reverb effect, set it to 0.
(P.21)"
(P.148)
(P.148)
(P.149)
Chorus)(P.150)
(P.150)
(P.151)
(P.152)
(P.153)
(P.154)
(P.155)
(P.156)
(P.158)
Chorus)(P.159)
(P.159)
(P.160)
(P.161)
(P.162)
(P.162)
(P.163)
(P.163)
(P.164)
(P.165)
Explanation
MFX Parameters
(P.151)
89
