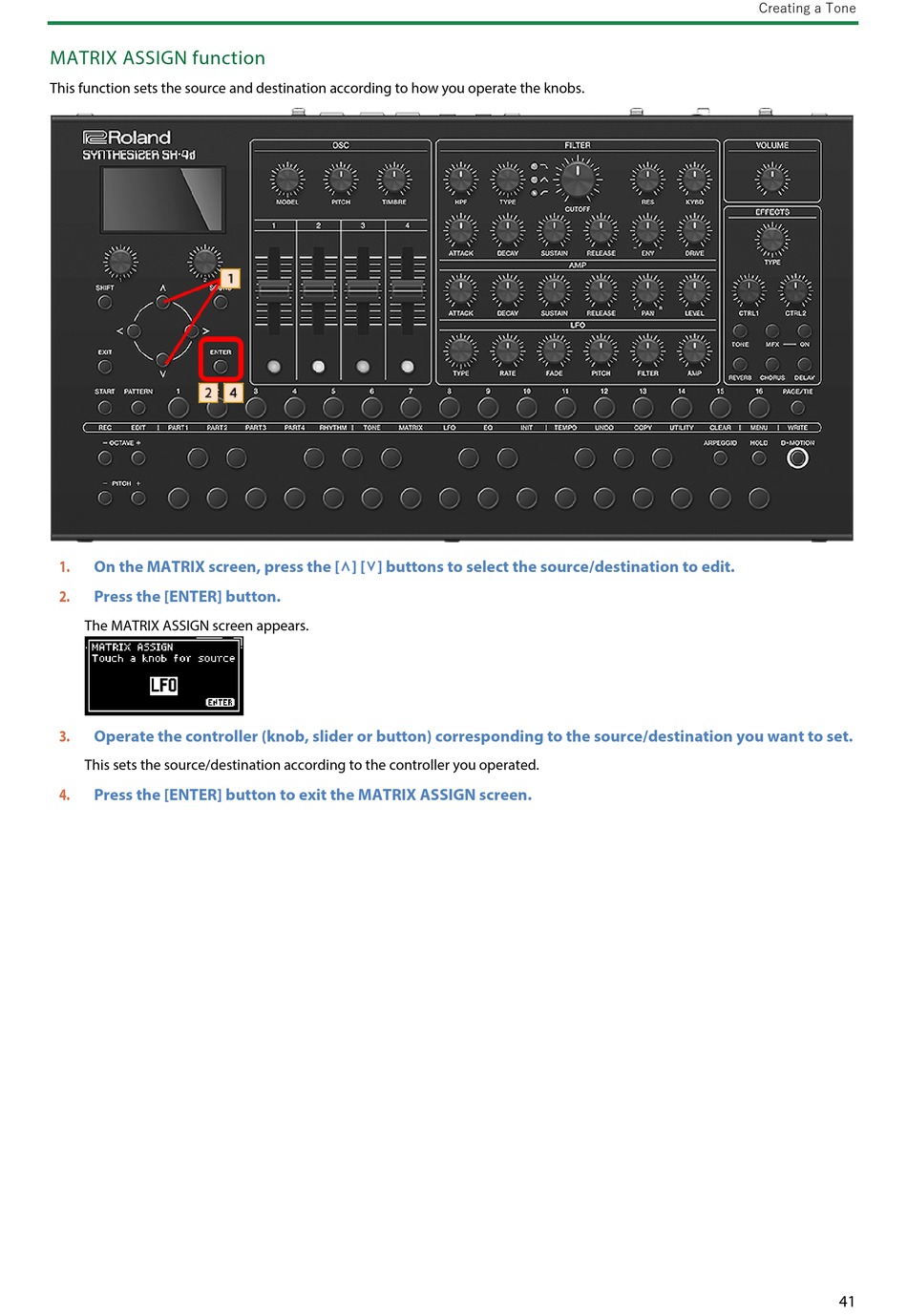

MATRIX ASSIGN function
This function sets the source and destination according to how you operate the knobs.
1. On the MATRIX screen, press the [ä] [å] buttons to select the source/destination to edit.
2. Press the [ENTER] button.
The MATRIX ASSIGN screen appears.
3. Operate the controller (knob, slider or button) corresponding to the source/destination you want to set.
This sets the source/destination according to the controller you operated.
4. Press the [ENTER] button to exit the MATRIX ASSIGN screen.
