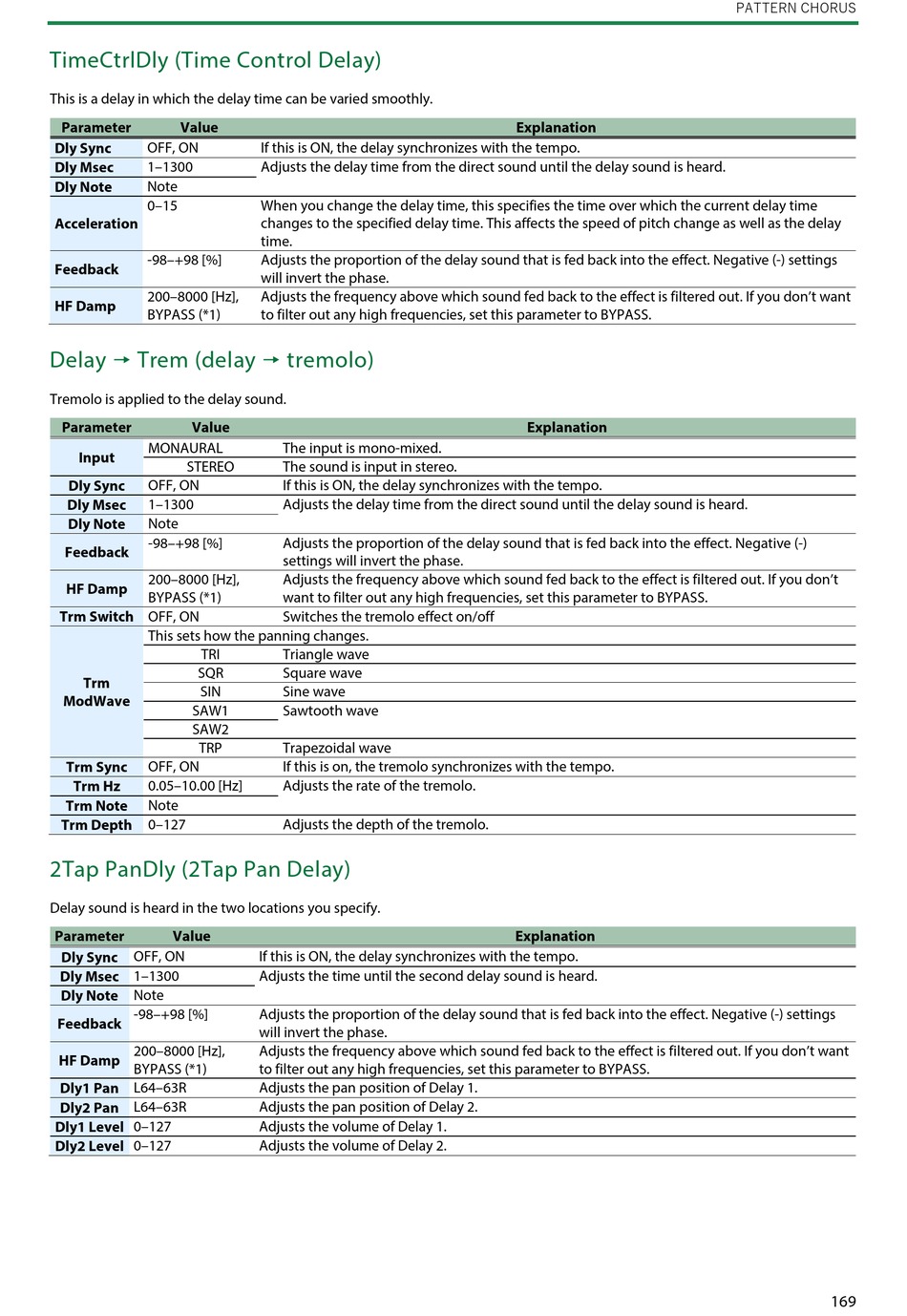

TimeCtrlDly (Time Control Delay)
This is a delay in which the delay time can be varied smoothly.
Parameter Value
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
0–15
Acceleration
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
Delay Ó Trem (delay Ó tremolo)
Tremolo is applied to the delay sound.
Parameter Value
MONAURAL
Input
STEREO
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
Trm Switch OFF, ON
This sets how the panning changes.
TRI
SQR
Trm
SIN
ModWave
SAW1
SAW2
TRP
Trm Sync OFF, ON
Trm Hz 0.05–10.00 [Hz]
Trm Note Note
Trm Depth 0–127
2Tap PanDly (2Tap Pan Delay)
Delay sound is heard in the two locations you specify.
Parameter Value
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
Dly1 Pan L64–63R
Dly2 Pan L64–63R
Dly1 Level 0–127
Dly2 Level 0–127
If this is ON, the delay synchronizes with the tempo.
Adjusts the delay time from the direct sound until the delay sound is heard.
When you change the delay time, this specifies the time over which the current delay time
changes to the specified delay time. This affects the speed of pitch change as well as the delay
time.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings
will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't want
to filter out any high frequencies, set this parameter to BYPASS.
The input is mono-mixed.
The sound is input in stereo.
If this is ON, the delay synchronizes with the tempo.
Adjusts the delay time from the direct sound until the delay sound is heard.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-)
settings will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't
want to filter out any high frequencies, set this parameter to BYPASS.
Switches the tremolo effect on/off
Triangle wave
Square wave
Sine wave
Sawtooth wave
Trapezoidal wave
If this is on, the tremolo synchronizes with the tempo.
Adjusts the rate of the tremolo.
Adjusts the depth of the tremolo.
If this is ON, the delay synchronizes with the tempo.
Adjusts the time until the second delay sound is heard.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings
will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't want
to filter out any high frequencies, set this parameter to BYPASS.
Adjusts the pan position of Delay 1.
Adjusts the pan position of Delay 2.
Adjusts the volume of Delay 1.
Adjusts the volume of Delay 2.
Explanation
Explanation
Explanation
