Od/Ds -> A. Wah (Overdrive/Distortion -> Auto Wah) - Roland SH-4d Owner's Manual

MFX Parameters
Parameter Value
SMALL, BUILT-IN, 2-
STACK, 3-STACK
AmpType
TWah OFF, ON
Switch
LPF, BPF
TWah Mode
DOWN, UP
TWah Polar
TWah Sens 0–127
TWah 0–127
Manual
0–127
TWah Peak
D100: 0W–D0: 100W
TWah Bal
Low Gain -15–+15 [dB]
High Gain -15–+15 [dB]
Level 0–127

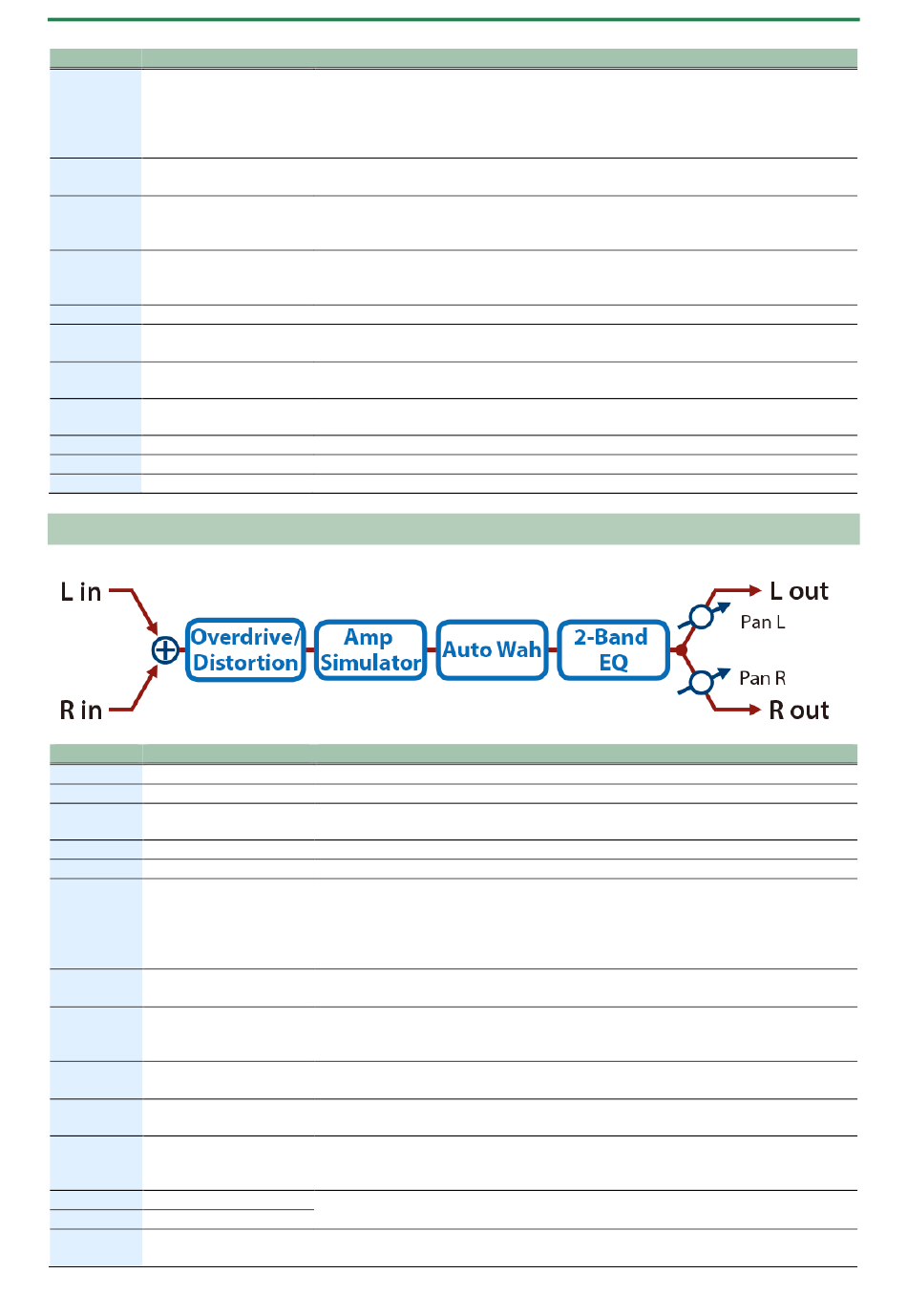

OD/DS -> A. Wah (Overdrive/Distortion -> Auto Wah)
Parameter Value
Drive Switch OFF, ON
D. Type OVERDRIVE, DISTORTION
0–127
Drive
0–127
Tone
Amp Switch OFF, ON
SMALL, BUILT-IN, 2-
STACK, 3-STACK
AmpType
AWah OFF, ON
Switch
LPF, BPF
AWah Mode
AWah 0–127
Manual
0–127
AWah Peak
OFF, ON
AWah Sync
AWRate 0.05–10.00 [Hz]
AWRate Nt Note(P.167)
AWah 0–127
Depth
152
Type of guitar amp
SMALL: Small amp
BUILT-IN: Single-unit type amp
2-STACK: Large double stack amp
3-STACK: Large triple stack amp
Wah on/off
Filter type
LPF: The wah effect will be applied over a wide frequency range.
BPF: The wah effect will be applied over a narrow frequency range.
Direction in which the filter will move
DOWN: The filter will change toward a lower frequency.
UP: The filter will change toward a higher frequency.
Sensitivity with which the filter is modified
Center frequency at which the wah effect is applied
Width of the frequency region at which the wah effect is applied
Increasing this value will make the frequency region narrower.
Adjusts the volume balance between the sound that is sent through the wah (W) and
the sound that is not sent through the wah (D).
Amount of boost/cut for the low-frequency range
Amount of boost/cut for the high-frequency range
Output Level
Turns overdrive/distortion on/off
Type of distortion
Degree of distortion
Also changes the volume.
Sound quality of the Overdrive effect
Turns the Amp Simulator on/off.
Type of guitar amp
SMALL: Small amp
BUILT-IN: Single-unit type amp
2-STACK: Large double stack amp
3-STACK: Large triple stack amp
Wah on/off
Filter type
LPF: The wah effect will be applied over a wide frequency range.
BPF: The wah effect will be applied over a narrow frequency range.
Center frequency at which the wah effect is applied
Width of the frequency region at which the wah effect is applied
Increasing this value will make the frequency region narrower.
If this is ON, the rate synchronizes with the tempo of the rhythm.
Tempo (Pattern)
Tempo (System)(P.76)
Frequency of modulation
Depth at which the wah effect is modulated
