Description and Operation
Configuration
Configuring the Receiver
6. To set up the base station, open the Base tab and set the following parameters (see Figure 29 on
page 45):
• Antenna Phase Center Position (APC) - enter latitude, longitude, and altitude (ellipsoidal height)
values of the antenna position. Do one of the following:
• If known, type in the values.
• Click Get from receiver to use the current antenna position.
7. Restart your receiver. Open the Base tab and check coordinates. Click Refresh, to refresh the
parameters.
44

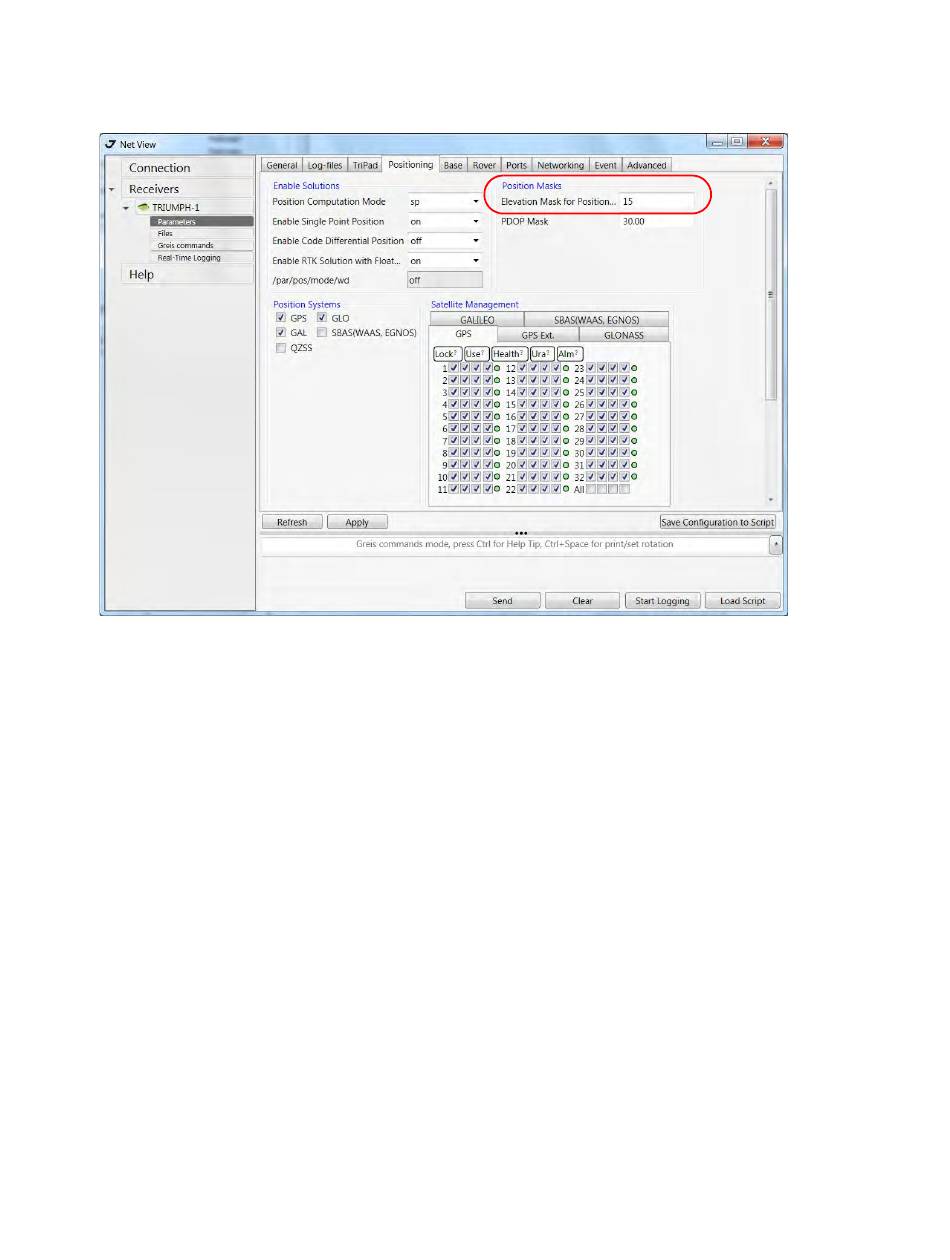

Figure 28. Positioning tab - Elevation Mask
