Specifications
Connector Specifications
GSM Module Details
Ethernet Connector
Ethernet connector is a sealed receptacle, 7 pin, ODU p/n G80F2C-P07QC00-0000 (Figure 4).
GNSS External Antenna RF Connector
The external antenna connector type (Table 10) is a TNC RF connector with an Applied Engineering
Product p/n
6001-7051-003
Type
TNC
EVENT and 1PPS Connectors (Optional)
The EVENT and 1PPS connectors are coaxial female receptacles of BNC series, Kings Electronics part
number KC-79-108. These connectors are optional.
88

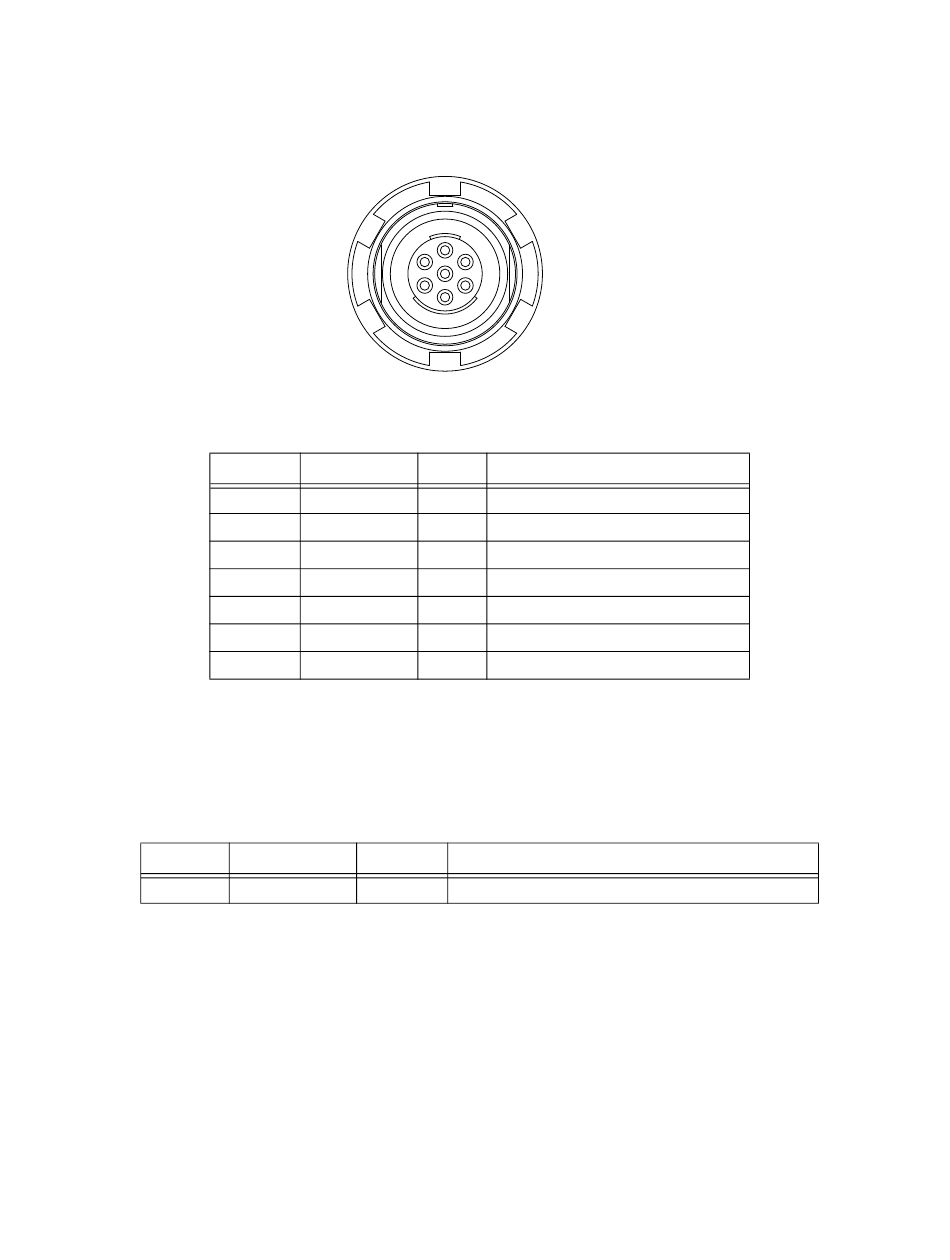

Figure 4. Ethernet Connector
Table 9. Ethernet Connector Specifications
Number Signal Name
1
2 Power_GND
3 TXD+
4 TXD-
5 RXD+
6 RXD-
7 LAN LED
.
Table 10. GNSS External Antenna RF Connector
Signal Name Dir
ANT_IN I
2
7
3
1
6
4
5
Dir
Not used
Signal ground
O Transmit data plus
O Transmit data minus
I Receive data plus
I Receive data minus
External LAN LED anode
RF input from LNA, 100 mA at 5.0 volts DC output
Details
Details
