4. Set up the GSM module making settings in the appropriate subtabs according selected mode.
5. After all settings click Apply, then click FileDisconnect.
6. If needed, launch NetView and set up the receiver to run as an RTK Base station.
Settings for the RCV subtab
The RCV subtab is depicted in Figure 24.
• IP address - IP address of base station.
• Port - base station's port
• Login - designation of base station's TCP port (A, B, C, D, E or empty).
• Password - password of base station.
IP address, Port, Login, and Password are the parameters of other receiver, configured as a base station
and connected with Internet via Ethernet or GPRS.
www.javad.com

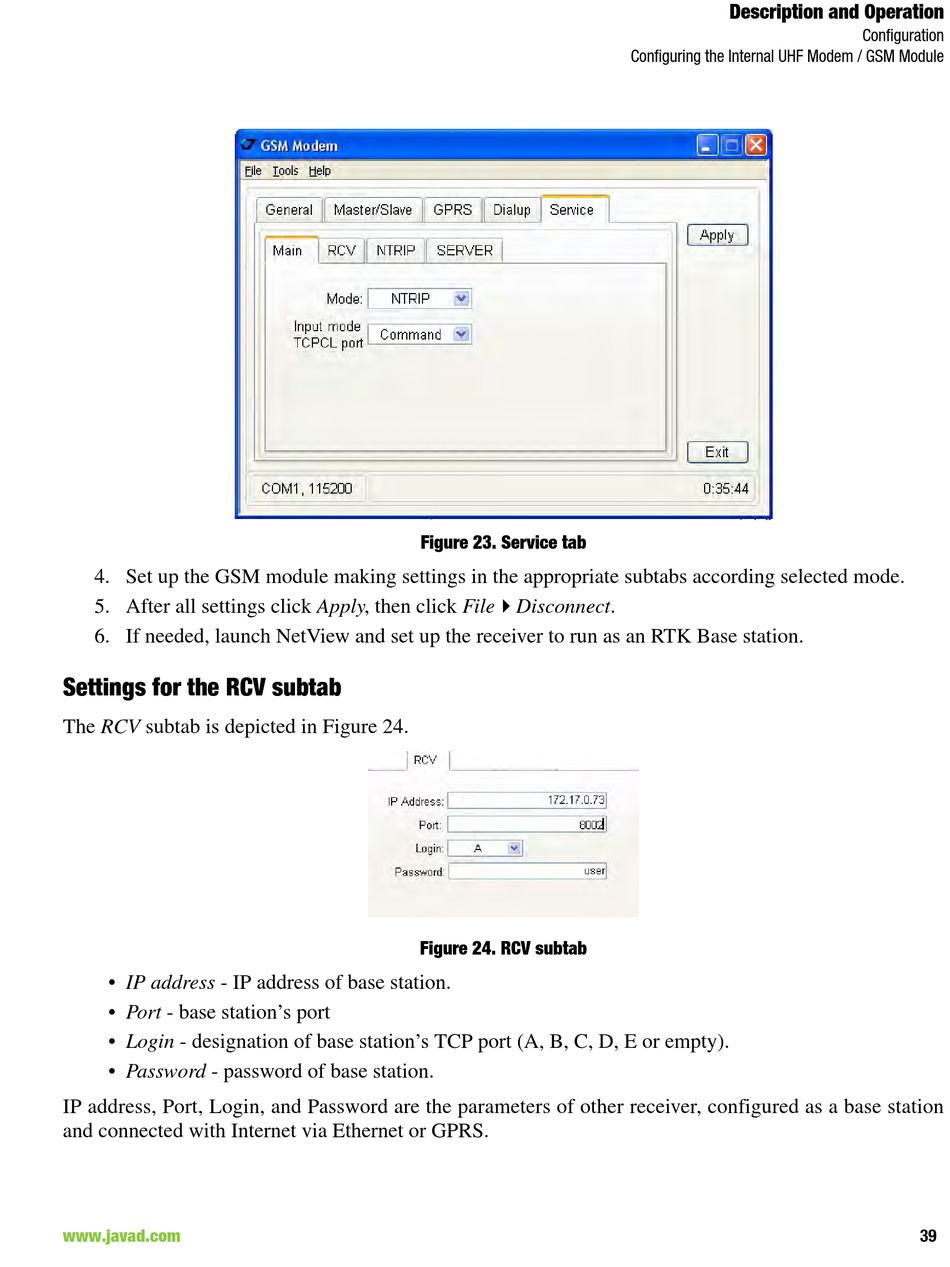

Figure 23. Service tab
Figure 24. RCV subtab
