Javad TRIUMPH-1 Operator's Manual page 25

4. In the General tab set The Mode to OFF and click Apply. Wait till the modem status will be off.
5. Select in the SIM card drop-down list box the desired SIM and click Apply.
Note:
SIM 1 is the SIM card under small door (see Figure 6 on page 23); SIM 2 is under the TRIUMPH-1 cover
(see Figure 8 on page 24). SIM 3=SIM 2 and it is placed under RF board.
6. When SIM card is selected, select the Mode to desired mode and click Apply.
7. Click Exit to quit ModemVU.
www.javad.com

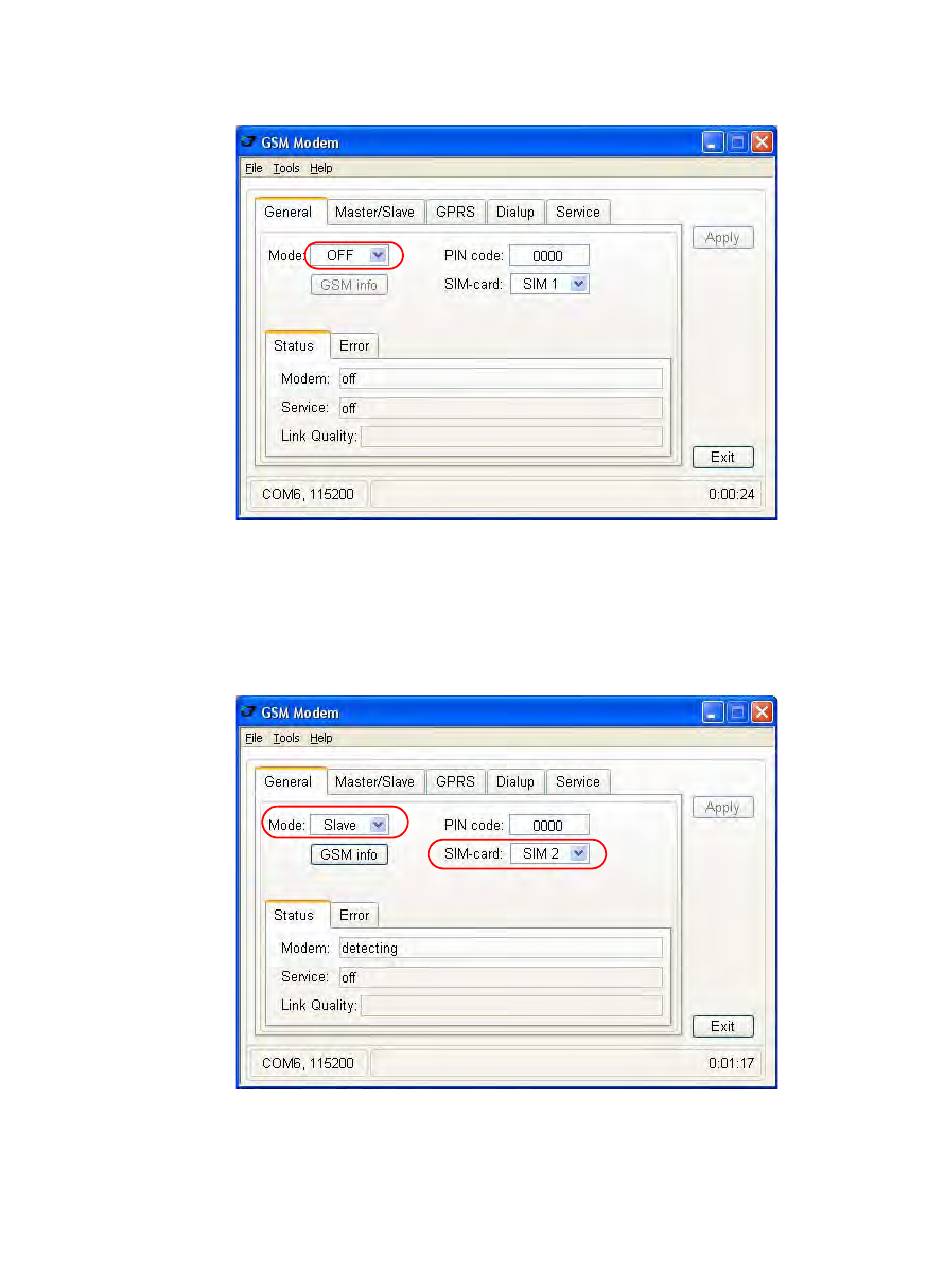

Figure 10. General Tab
Figure 11. General Tab. SIM 2 selected, Slave mode selected
Description and Operation
Pre-Survey Preparation
Installing the Optional SIM Card
25
