Javad TRIUMPH-1 Operator's Manual page 66

Configuration Examples
TRIUMPH-1 as a Base and TRIUPMPH-VS as a Rover via UHF
TRIUMPH-VS as a Rover Setup
• Specify the antenna (external or internal)
Note:
All UHF parameters for rover, such as frequency, protocol parameters should be identical with the same
base parameters.
4. To setup the frequency, select the value from the list, by tapping on the Frequency. If there is no
needed frequency value, tap Add or Edit and insert/edit the frequency:
5. The protocol parameters can be reviewed/ changed by tapping on the Protocol button. Use JAVAD
protocol type if base and rover are the JAVAD GNSS receivers .
66

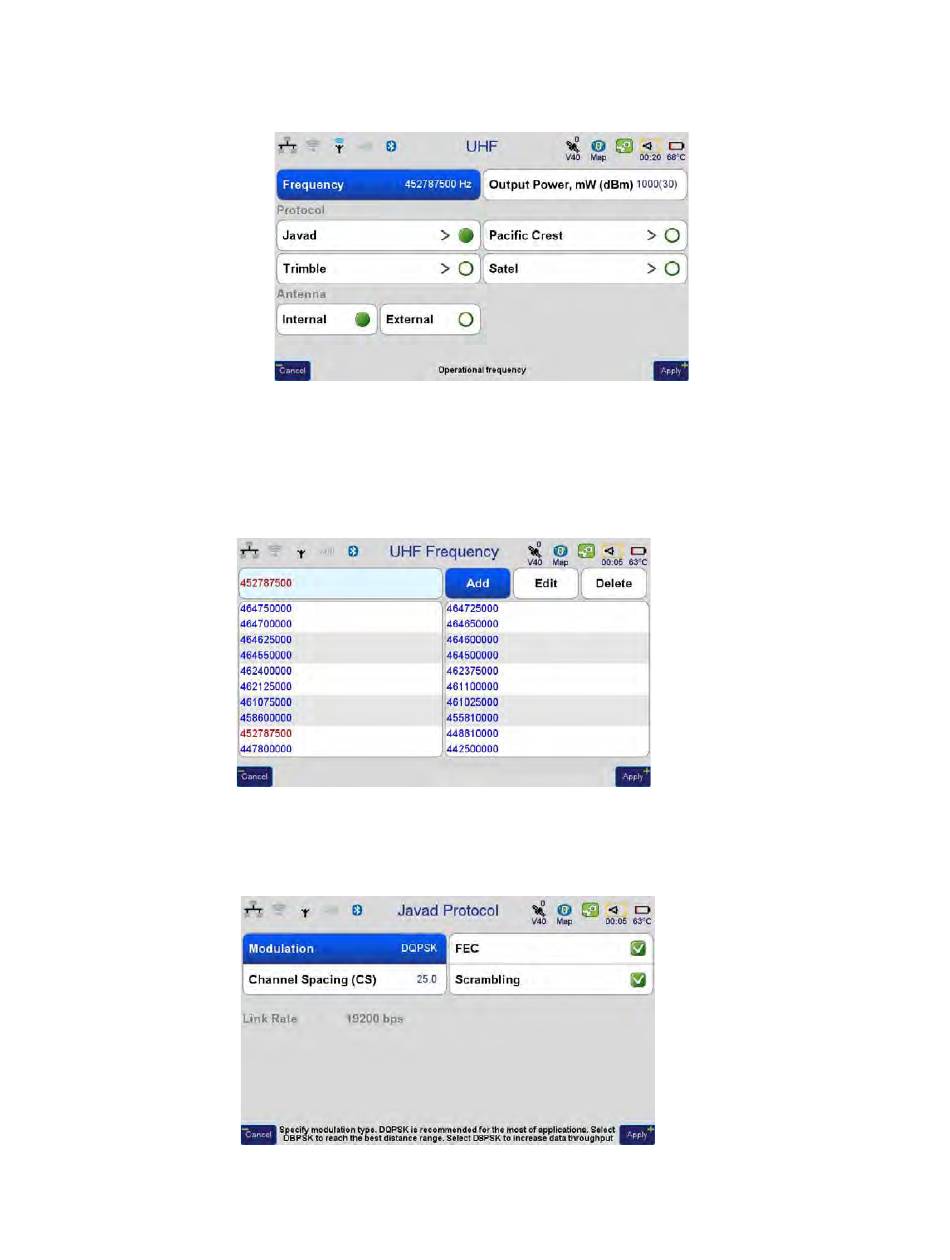

Figure 2-3. UHF parameters
Figure 2-4. UHF Frequency
Figure 2-5. Protocol parameters
