5. Close the holder (Figure 6).
6. Push the SIM card holder to LOCK to close it tightly.
7. Close the door and tighten screws.
Second SIM Card Installation
1. Ensure the receiver is turned off.
2. Open the bottom of the case screwing off 4 self taping screw (Figure 7)
SIM Card
3. Push SIM card holder to OPEN.
www.javad.com
1

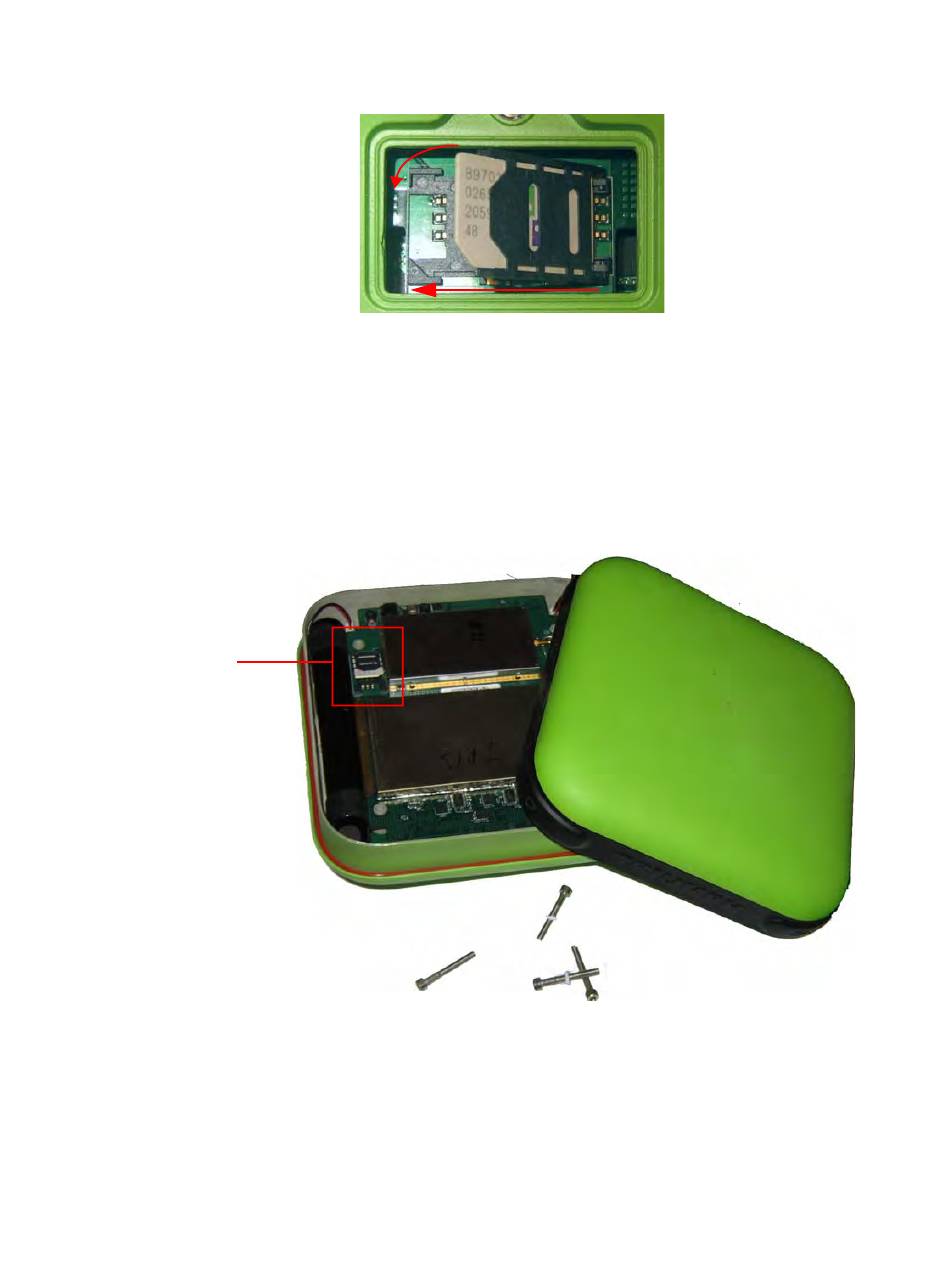

Figure 6. Installing First SIM card
Figure 7. TRIUMPH-1 Second SIM Card installation
2
Description and Operation
Pre-Survey Preparation
Installing the Optional SIM Card
23
