Note:
The description of these parameters exceeds the scope of this document, see NetView Software Manual,
available from http:///www.javad.com, for detailed information of base station's configuration and
Ethernet and TCP port settings.
Settings for the NTRIP subtab

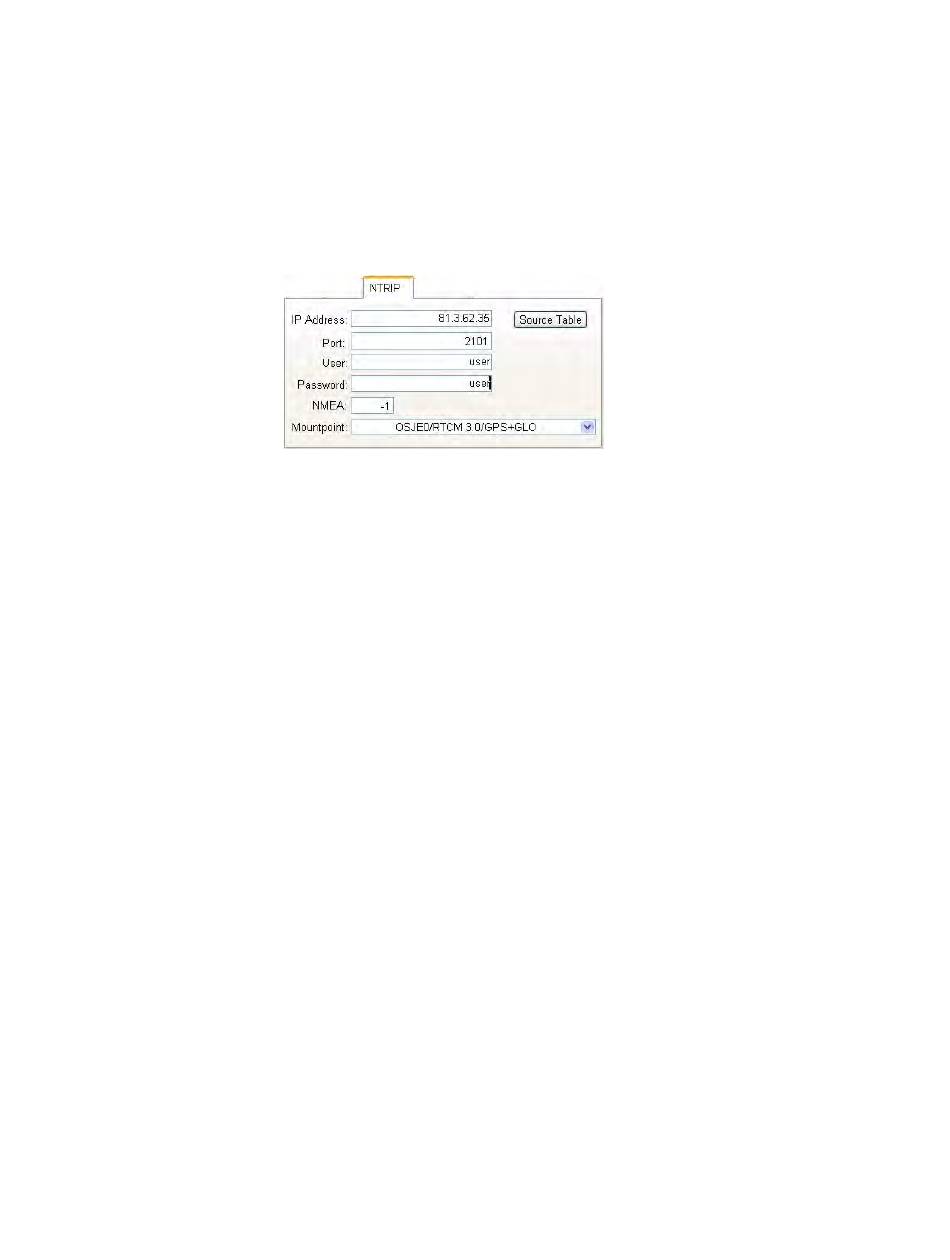

The NTRIP subtab is depicted in Figure 25:
• IP address - The value of this field should match the IP address of the NTRIP caster to use.
• Port - The value of this field should match the IP port the NTRIP caster is listening on for
connections.
• User - This parameter specifies user ID for the protected space of the requested mount point.Only
basic authentication scheme is supported. If empty, no user or password values will be sent to the
NTRIP caster.
• Password - This field specifies the password for the protected space of the requested mount point.
Only basic authentication scheme is supported.
Usually, this information is given by NTRIP service provider.
• NMEA - this box allows using appropriate parameter to receive/no receive the GGA messages for
NTRIP caster:
• -1 – receiver will not send NMEA GGA messages to NTRIP caster.
• 0 – receiver will send NMEA GGA message to NTRIP caster only once after connection to the
caster is established.
• [1...86400] – receiver will send NMEA GGA messages to the NTRIP caster periodically, every
specified number of seconds.
Mountpoint drop-down list box allows to select the necessary mount point from the list. This drop-down
list box specifies the mount point of the NTRIP caster to get data from. The detailed information about
each mount point it is possible to obtain and view clicking the Source Table button.
Note:
The description of these parameters exceeds the scope of this document, see ModemVU Software Manual,
available from http:///www.javad.com for detailed information.
•
6.2. Configuring the Receiver
Both Base and Rover receivers must be configured according to the desired survey method.
40
Figure 25. NTRIP subtab
