Description and Operation
Configuration
Configuring the Internal UHF Modem / GSM Module
2. When finished, click FileDisconnect.
Configuring the GSM module for Point-to-Point radio link
Note:
To comply with RF exposure requirements, maintain at least 20 cm between the user and the GSM
modem.
1. On the General tab, set the following parameters (Table 3) and click Apply (Figure 19 on
page 35). In this tab modem and service status and possible errors are displayed.
Mode
PIN
34

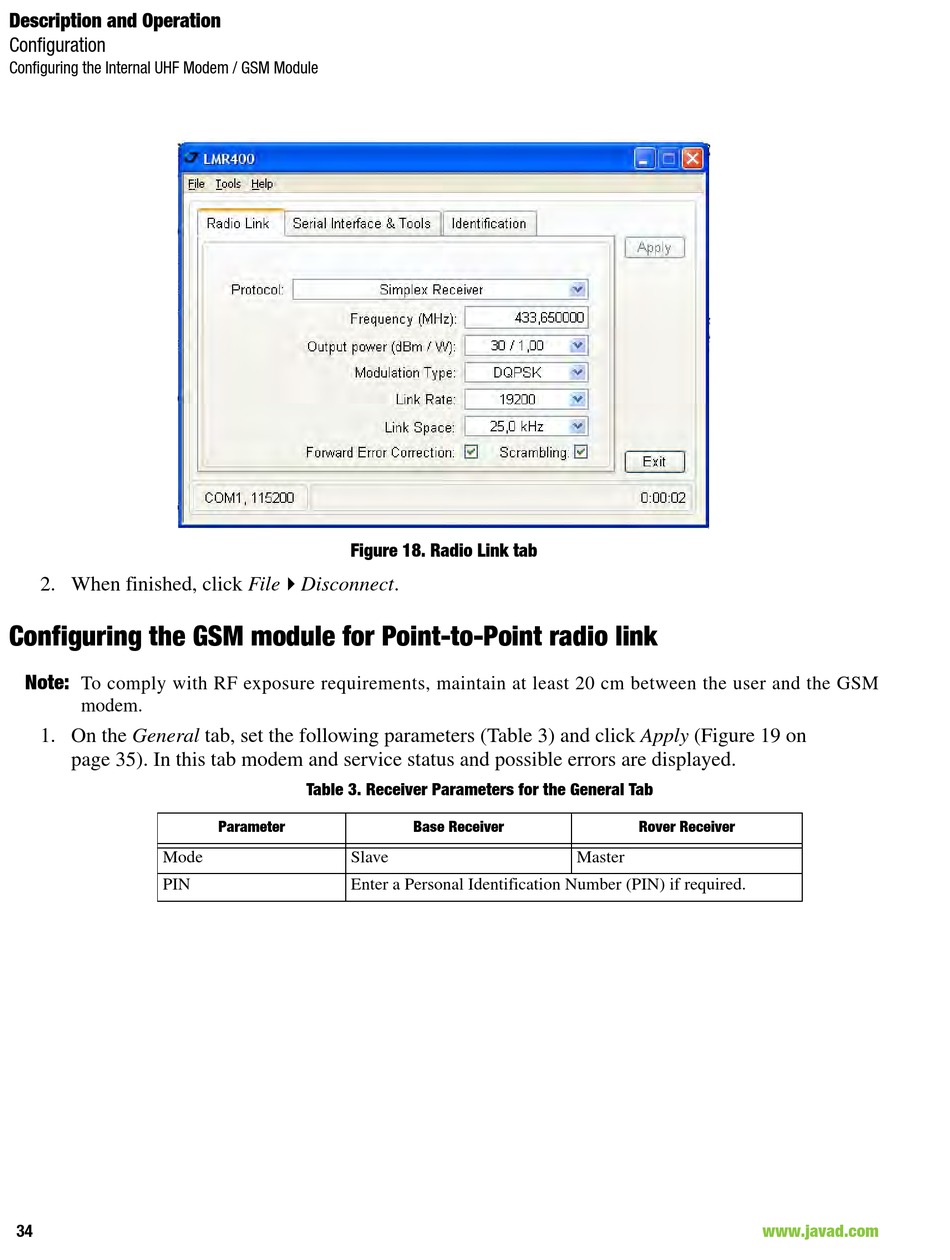

Figure 18. Radio Link tab
Table 3. Receiver Parameters for the General Tab
Parameter
Slave
Enter a Personal Identification Number (PIN) if required.
Base Receiver
Master
Rover Receiver
