3. Follow the on-screen installation instructions. Click Next to continue, Back to get back to previous

step, or Cancel to quit the installation.

4. Keep the default installation location or select a new location.

5. Click Finish to complete the installation.

6. If desired, create a shortcut on the computer's desktop for quick access to ModemVU.

4.2. Installing the Optional SIM Card

The SIM card provides telephony communication for data transfer between two GSM-capable receivers.

The SIM card can be purchased at your local cellular phone supply store. Once installed, the card

generally remains installed.

The SIM card must support Circuit Switched Data to communicate directly between receivers. The SIM

card must have GPRS support to communicate with a GPS Network IP address.

Note:

Both the Base and Rover receivers must have a SIM card installed (supporting Circuit Switched Data) and

have subscriptions to the same service provider for proper communication.

First SIM Card Installation

1. Ensure the receiver is turned off.

2. Open the small SIM card door.

3. Push SIM card holder to OPEN.

4. Insert SIM card into SIM card holder label side up.

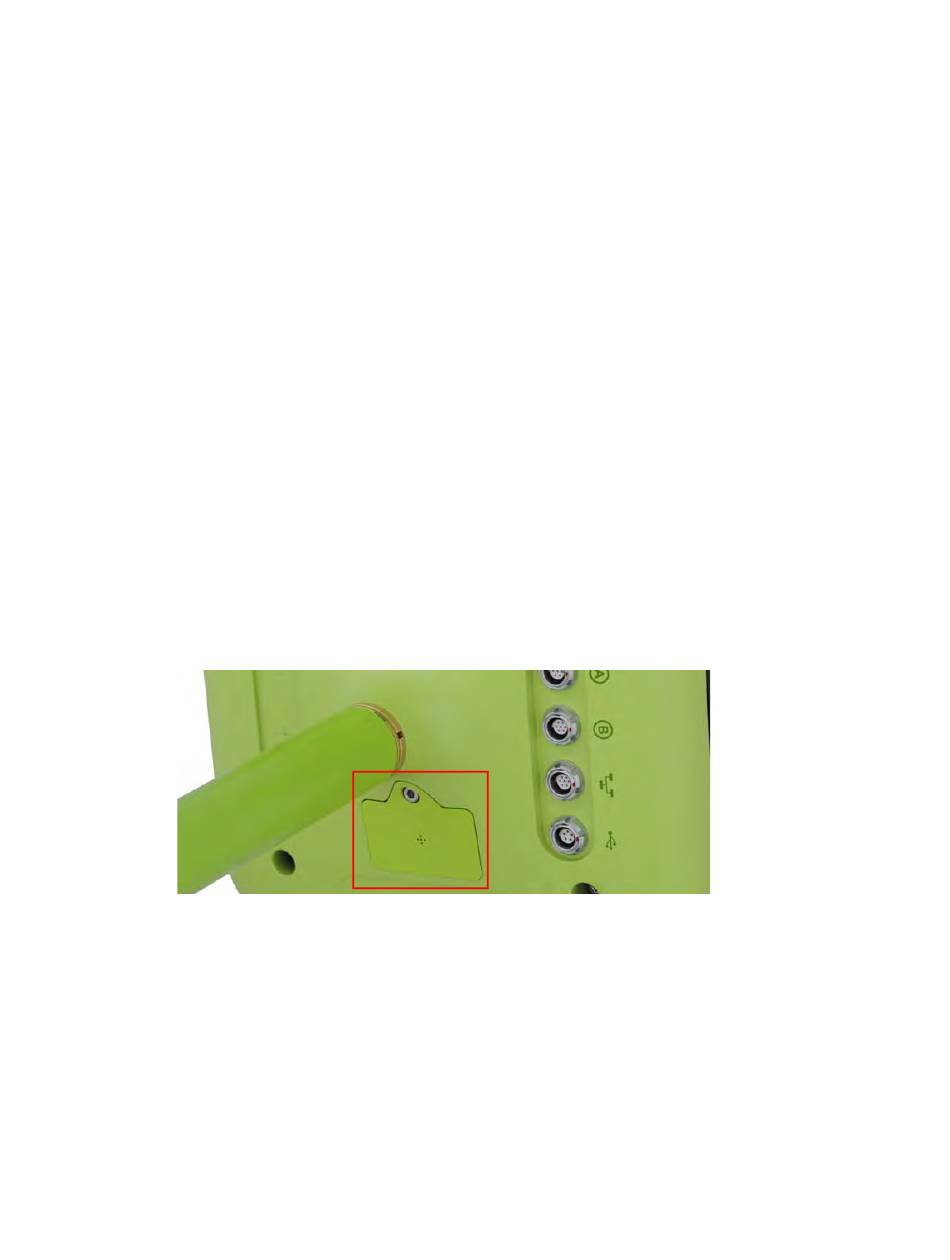

Figure 5. TRIUMPH-1 First SIM card door
