Chapter 1
D O
ESCRIPTION AND PERATION
Based on the TRIUMPH Chip, TRIUMPH-1 is a fully integrated package ready for your demanding jobs,
offering precise and automatic performance beyond anything that you have experienced so far. An
elegant, rugged, light, and hermetically sealed box accommodates all GNSS and Receiver electronics,
antennas, and up to 15 hours of rechargeable batteries and its sophisticated power management system.
The close proximity of our batteries with the electronic section helps the batteries to absorb heat and
function better in cold weathers. The batteries can be charged with any power supply from 10 volts to 30
volts, which includes car, ship and airplane batteries.
All GNSS, UHF, GSM, Bluetooth®, and WiFi antennas are conveniently hidden and protected. An
external antenna can also be connected to bypass the internal GNSS antenna. There are two SIM cards
inside the box, one of them can be easily reached and changed via a small sealed door (Figure 1).

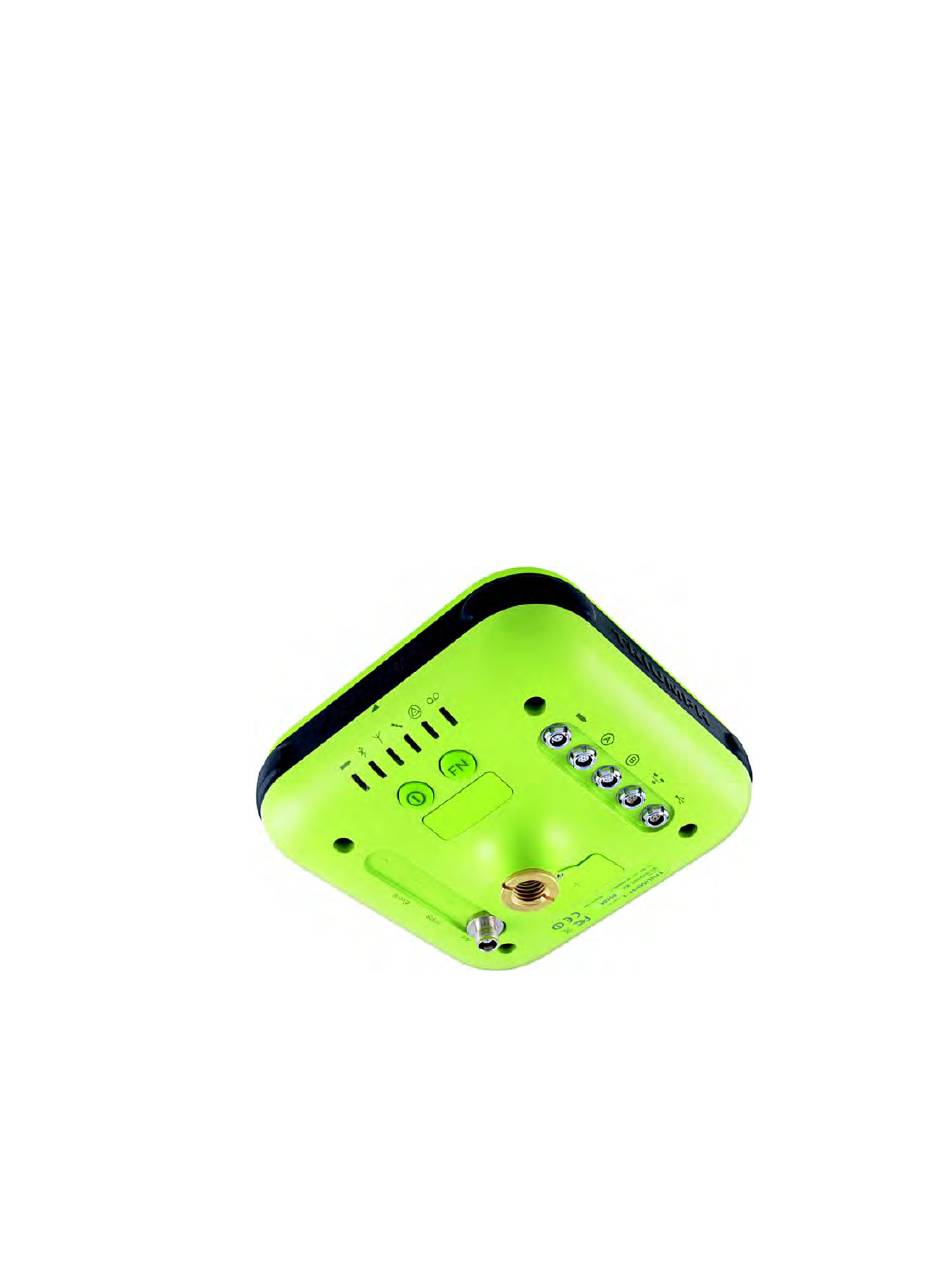

Figure 1. TRIUMPH-1 Receiver
TRIUMPH-1 can receive and processes multiple signal types (including the latest GPS L1/L2/L2C/L5;
GLONASS L1/L2, and Galileo signals) improving the accuracy and reliability of your survey points and
positions, especially under difficult jobsite conditions.
The GNSS component of TRIUMPH-1 receivers means you can access the GPS (Global Positioning
System) satellites of the United States, the Galileo (an upcoming global positioning system maintained
and operated by Galileo Industries,) and the GLONASS (Global Navigation Satellite System) satellites of
