Configuration Examples
TRIUMPH-1 as a Base and TRIUPMPH-VS as a Rover via UHF
TRIUMPH-1 as a Base Setup

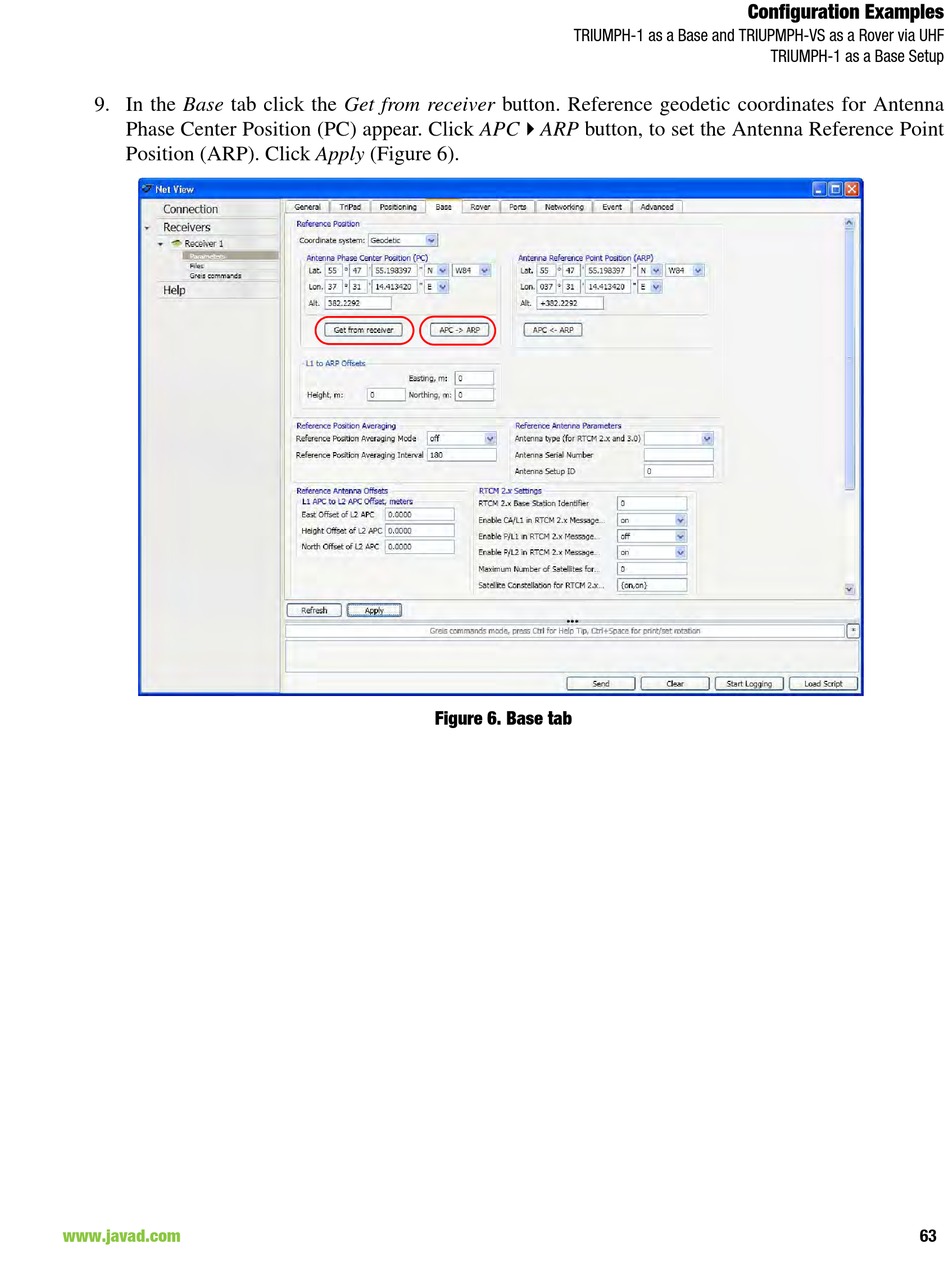

9. In the Base tab click the Get from receiver button. Reference geodetic coordinates for Antenna
Phase Center Position (PC) appear. Click APCARP button, to set the Antenna Reference Point
Position (ARP). Click Apply (Figure 6).
Figure 6. Base tab
www.javad.com
63
