5.1. Establishing an RS232 Cable Connection

1. Using the RS232 cable, connect the serial port of your computer (usually COM1) to the receiver's
serial port A.
2. Press the power buttons on the receiver and computer to turn them on.
3. Start NetView, select SER as type of connection mode, and specify the port the receiver is con-
nected to.

5.2. Establishing a USB Cable Connection

Make sure the computer has JAVAD GNSS's USB driver installed (available from www.javad.com)
before continuing.
1. Using the USB cable, connect the USB port on the receiver to a USB port on the computer.
2. Press the power buttons on the receiver and computer to turn them on.
3. Start NetView and select USB as type of connection mode and select USB port ID from the list.
www.javad.com

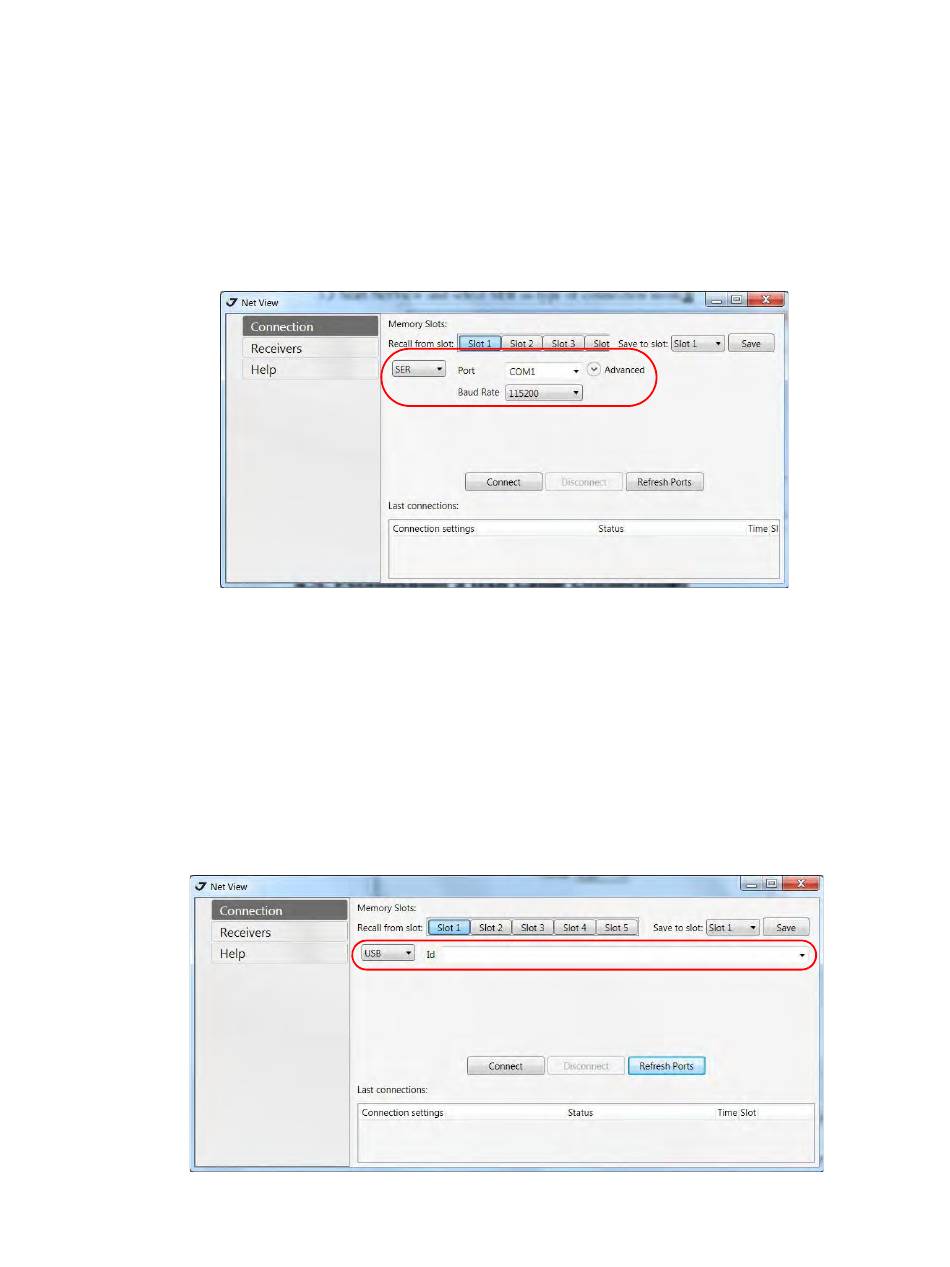

Figure 13. NetView. Connection via serial port
Figure 14. NetView. Connection via USB port
Description and Operation
Connecting the Receiver and a Computer
Establishing an RS232 Cable Connection
29
