1. TRIUMPH-1 as a Base and TRIUPMPH-VS as a Rover via UHF
1.1. TRIUMPH-1 as a Base Setup
Please do not forget to attach the UHF/GSM antenna to TRIUMPH-1.
Attaching Optional UHF/GSM Antenna to TRIUMPH-1
The TRIUMPH-1 modem antenna can be mounted on standard poles (5/8-11inches thread). Attached to
the TRIUMPH-1 receiver this antenna gets a part of survey pole, making handling with receiver easy and
simple.
1. Connect the receiver to PC using RS-232 port.
2. Turn on the receiver.
3. Start NetView.
4. Open the Connection section on the left panel and select the port, TRIUMPH-1 is connected to.
www.javad.com
E
XAMPLES

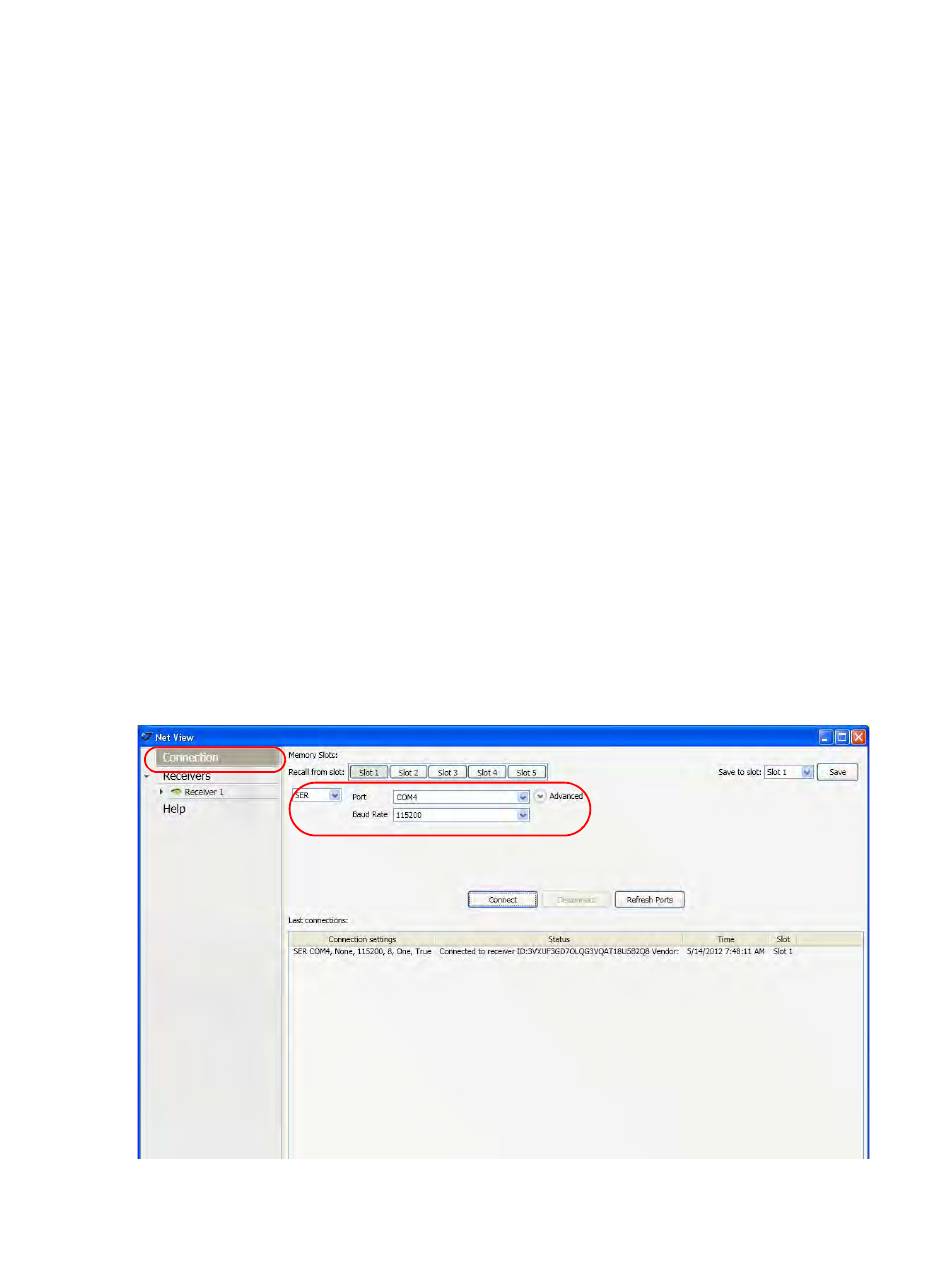

Figure 1. NetView. Connection
