SIM Card Slot

2.2. SIM Card Slot

The SIM card slot allows a standard SIM card to be installed in the receiver. Once installed, the SIM card

provides a unique identification for the receiver's GSM module and enables the receiver's GSM

functionality based on the subscribed services (the receiver board accesses the GSM module which

accesses the SIM card). The SIM card usually remains inside the receiver. The GSM module with the

SIM card installed can be accessed via ModemVU for configuration purposes. A SIM card can be

purchased from your local cellular provider.

The TRIUMPH-1 receiver has the following ports (Figure 4):

• Power – used to connect the receiver to an external power source. This port can also be used to

charge the batteries. The body of the connector on the corresponding cable is red.

• Serial – r used for communication between the receiver and an external device. The body of the

connector on the corresponding cable is green.

• Ethernet - used to connect the receiver to local network. The body of the connector on the

corresponding cable is gray.

• USB – used for high-speed data transfer and communication between the receiver and an external

device. The body of the connector on the corresponding cable is black.

The external antenna connects to the TNC external antenna connector (optional).

The bottom connector connects the receiver to either a standard 5/8-11'' mounting thread pole/adapter or

the quick disconnects.

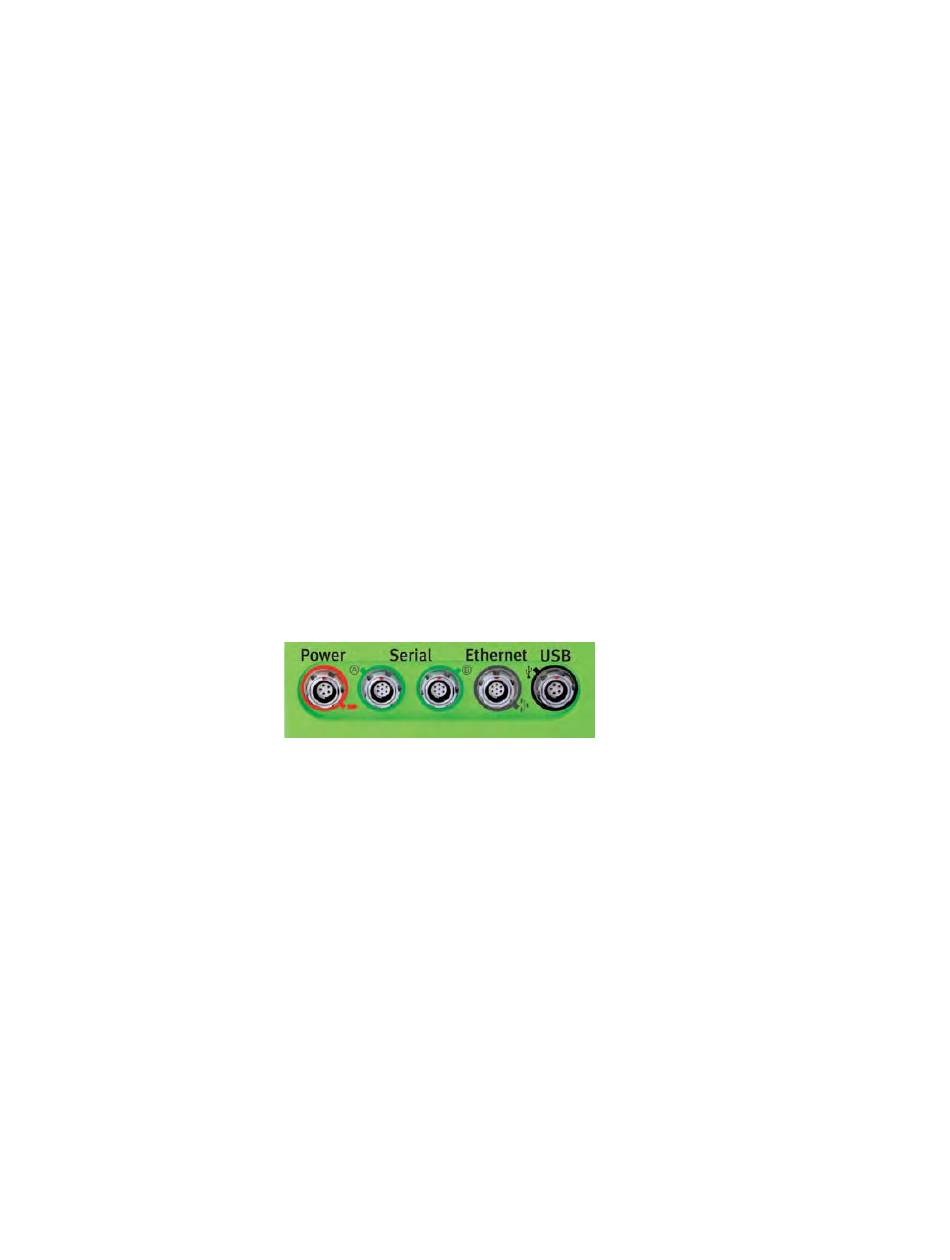

Figure 4. TRIUMPH-1 Ports
