Attaching Optional UHF/GSM Antenna

4.3. Attaching Optional UHF/GSM Antenna
A broadband, rugged, in-building or outdoor antenna designed to service the whole 406-470 MHz UHF
band and GSM quad band. With modest dimensions of 25 mm (OD) x 182 mm (height), this antenna
radiates with a typical peak omnidirectional gain of +1 dBi. Internally, the radiating element is DC
shunted to help protect the transceiver from nearby, but not direct ElectroStatic Discharge (ESD).
The TRIUMPH-1 modem antenna can be mounted on standard poles (5/8-11inches thread). Attached to
the TRIUMPH-1 receiver this antenna gets a part of survey pole, making handling with receiver easy and
simple.

4.4. Charging the Batteries

C : Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to the
AUTION
instructions.
Before beginning to work, fully charge the batteries for maximum operating time. An approximately 6-
hour charge cycle will fully charge the batteries; the batteries will charge simultaneously. The batteries
can not be overcharged.
Note:
The batteries are shipped from the factory with 40% of power. Fully charge the batteries before surveying.
The Li-Ion batteries used in the battery packs should run at no less than 80% capacity after 500 charging
cycles. These batteries do not need to be drained before recharging.
D : N
ANGER EVER ATTEMPT TO OPEN THE CASING OF THE DETACHABLE BATTERIES
CAN BE DANGEROUS IF MISHANDLED
D : D
ANGER O NOT INCINERATE OR HEAT BATTERY PACK ABOVE
). E
CELSIUS XCESSIVE HEAT CAN CAUSE SERIOUS DAMAGE AND POSSIBLE EXPLOSION
D : T
ANGER HE BATTERIES
,
AS SUNSHINE
Warning: Do not attempt to open the battery pack.
26

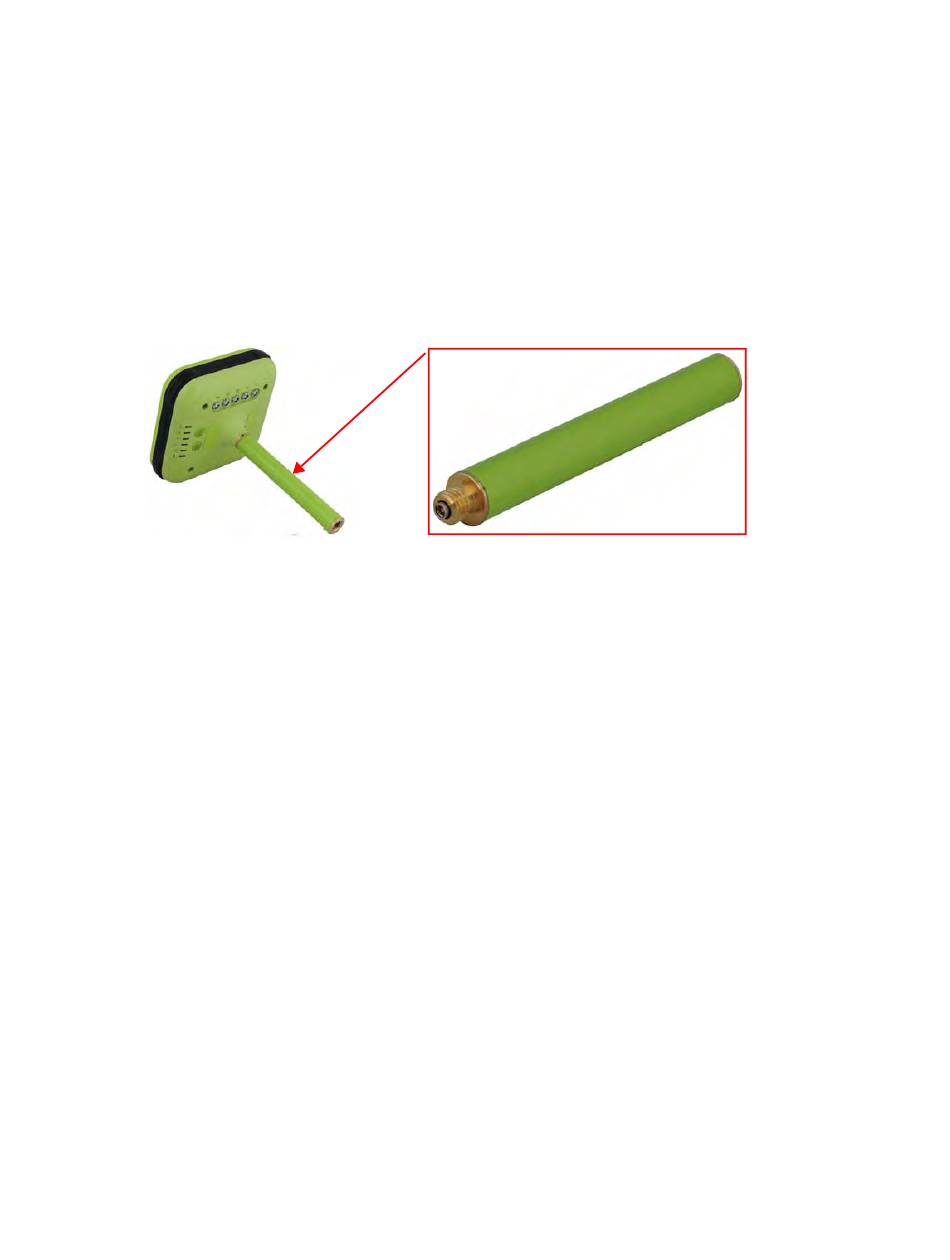

Figure 12. TRIUMPH-1 External UHF/GSM Antenna
!
(
OR BATTERIES INSTALLED
.
FIRE OR THE LIKE
212
DEGREES FAHRENHEIT
)
SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH
! L -I
ITHIUM ON BATTERIES
(100
DEGREES
.
