WiFi in Triumph-1

TRIUMPH-VS as a Rover Setup

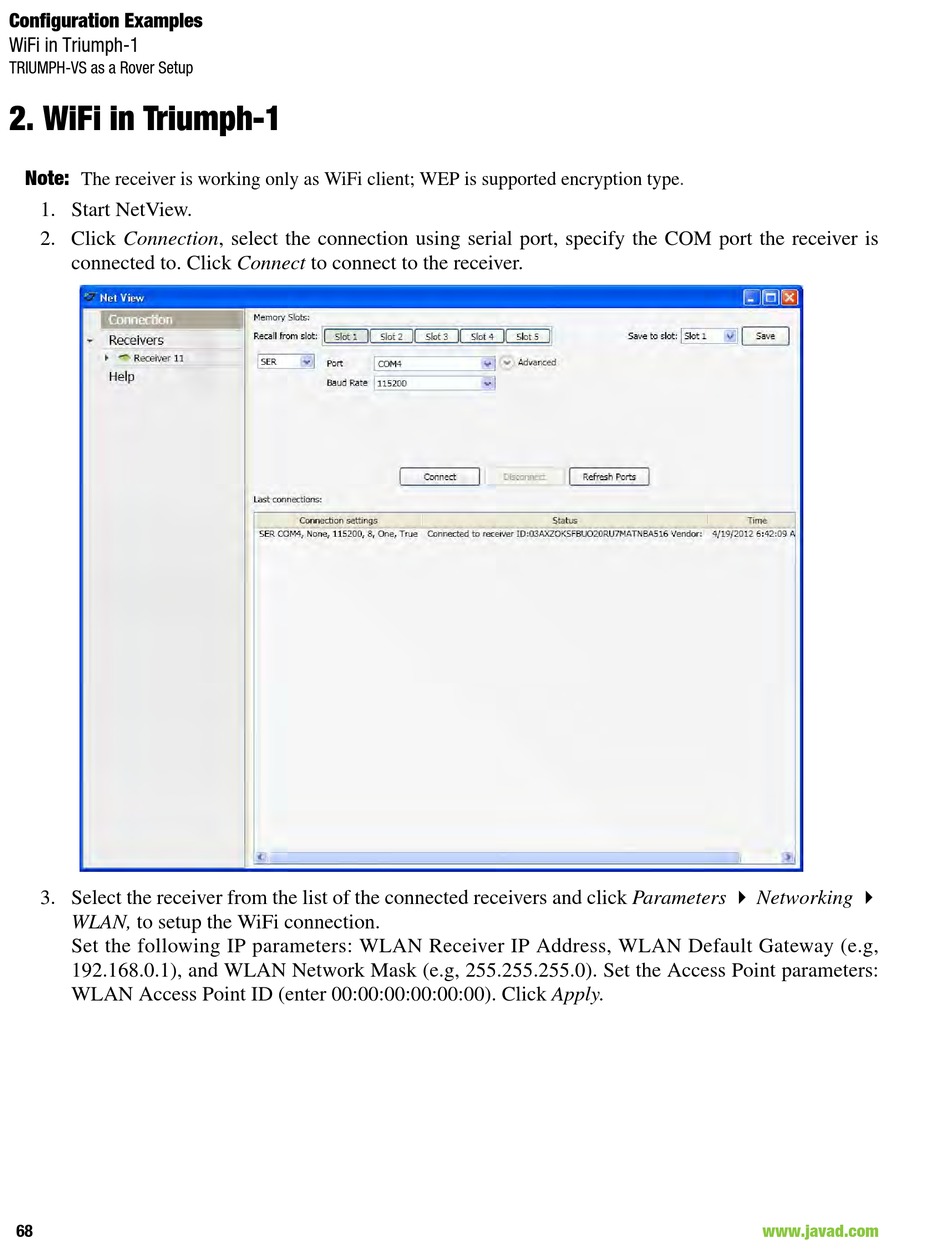

2. WiFi in Triumph-1

Note:

The receiver is working only as WiFi client; WEP is supported encryption

1. Start NetView.

2. Click Connection, select the connection using serial port, specify the COM port the receiver is

connected to. Click Connect to connect to the receiver.

3. Select the receiver from the list of the connected receivers and click Parameters  Networking 

WLAN, to setup the WiFi connection.

Set the following IP parameters: WLAN Receiver IP Address, WLAN Default Gateway (e.g,

192.168.0.1), and WLAN Network Mask (e.g, 255.255.255.0). Set the Access Point parameters:

WLAN Access Point ID (enter 00:00:00:00:00:00). Click Apply.

type.
